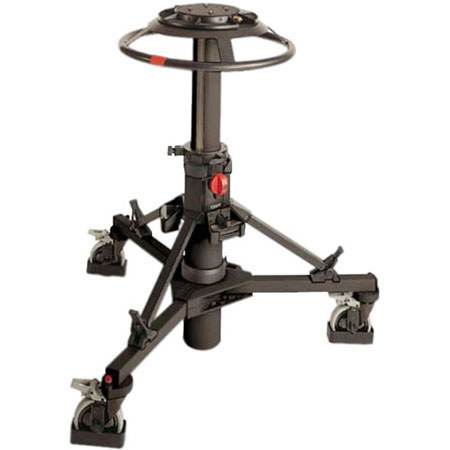

Vinten Pro-Ped OB Version Pedestal with 5.9" Wheels, Maximum Support 120 lbs

Vinten
SKU: VO39833B MFR: 39833B

List Price: $11,545.00

Our Price

$10,391.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Vinten

The Pro-Ped OB version is an economical, lightweight pedestal for field production, offering a two-stage system with a height range of 81.5 cm (32 in.). The lower stage column is balance assisted to give easy elevation.

The upper stage column offers perfect balance and on-shot movement. The pneumatic counterbalance system employs a self-pumping action, making it easy to use on location. The dolly is supplied with 15 cm (6 in.) castoring wheels for field production / OB.

Vinten Features

  • Lightweight
  • Self-pumping pneumatic counterbalance system
  • Easily transportable

Vinten Specifications

Payload
55 kg. (120 lbs)
Column Weight
19 kg. (41.8 lbs)
Skid Weight
9 kg. (19.8 lbs)
Trim Weights (6 Off - Total)
3.4 kg. (7.5 lbs)
Total Pedestal Weight
31.4 kg. (69.1 lbs)
Minimum Height
68.5 cm. (27")
Maximum Height
150 cm. (59.1")
On-Shot Stroke
41 cm. (16.1")
Skid Leg Radius
48 cm. (19")
Wheel Diameter
15 cm. (5.9")
Steering Ring Diameter
53.4 cm. (21")
Max Working Pressure
9.65 bar (140 psi)
Relief Valve Pressure
11.38 bar (165 psi)
Warranty
Vinten 1 Year Warranty
(*can be extended to - Full 2 years labor and parts warranty, after product registration)
Mfr #
39833B
SKU
VO39833B
