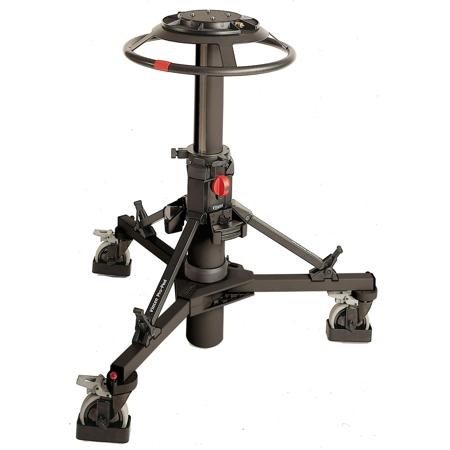

Vinten Pro-Ped Studio Version Pedestal with 4.9" Wheels, Maximum Support 120 lbs

Vinten

List Price: $11,545.00

Free Shipping

See all shipping options

Drop Ship This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Our Price

$10,391.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Vinten

The Pro-Ped Studio version is an economical, lightweight pedestal for studio use, offering a two-stage system with a height range of 81.5 cm (32 in.). The lower stage column is balance assisted to give easy elevation.

The upper stage column offers perfect balance and on-shot movement. The pneumatic counterbalance system employs a self-pumping action, making it easy to use on location. The dolly is supplied with track locks and cable guards for studio use.

Vinten Features

  • Lightweight
  • Self-pumping pneumatic counterbalance system
  • Easily transportable

Vinten Specifications

Payload
55 kg. (120 lbs)
Column Weight
19 kg. (41.8 lbs)
Skid Weight
9.4 kg. (20.7 lbs)
Trim Weights (6 Off - Total)
3.4 kg. (7.5 lbs)
Total Pedestal Weight
31.8 kg. (70 lbs)
Minimum Height
66.6 cm. (26.2")
Maximum Height
147.5 cm (58.1")
On-Shot Stroke
41 cm (16.1")
Skid Leg Radius
48 cm (19")
Wheel Diameter
12.5 cm (4.9")
Steering Ring Diameter
53.4 cm (21")
Max Working Pressure
9.65 bar (140 psi)
Relief Valve Pressure
11.38 bar (165 psi)
Warranty
Vinten 1 Year Warranty
(*can be extended to - Full 2 years labor and parts warranty, after product registration)
