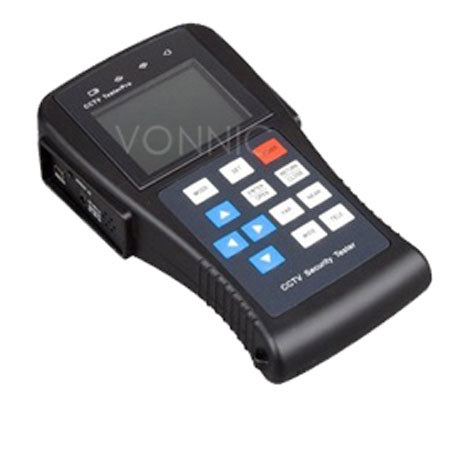

Vonnic A2812 Video Tester, NTSC/PAL, 2.8" Digital TFT-LCD Display

SKU: VOA2812 MFR: A2812
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist

Vonnic A2812 Specifications

Signal Mode NTSC/PAL (Auto Adapt)
Display 2.8 inch Digital TFT-LCD, 960 x240 Resolution
LCD Adjustment Brightness, Contrast, Saturation Adjustable
Video IN/OUT 1 Channel BNC Input & 1 Channel Output
Video Output Mode 1.0 Vp-p
Video Level Test Video Signal Measured in IRE or mV
Communication RS232, RS422 Simplex and RS485
PTZ Protocol Compatible with More Than 20 Protocols, Such As PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
Baud rate 150, 300, 360, 1200, 2400, 4800, 9600, 19200bps
Color Bar Generation Output Color Bar Video Signal for testing Monitor or Video Cable
UTP Cable Test Test UTP Cable Connection Status and Display in The Screen. Read the Number of The Test Box
RS 485 Data Analyst: Data Monitor Captures and Analyzes The Command Data from Controlling Device
Power Adapter DC 5V 2A
Battery Built-in 3.7V Lithium Polymer Battery, 2800mAh
Low Consumption Energy Saving Technology
Working Temperature -10deg.C to 50deg.C
Working Humidity 30%-90%
Dimensions 6.53x3.74x1.89" / 16.59x9.5x4.8cm
Weight 0.65lbs / 0.29kg
