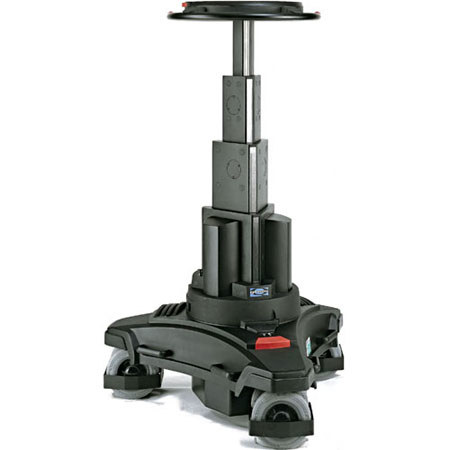

Vinten V4002-0002 Quattro-OBL Outside Broadcast 4-Stage Pedestal with 100cm / 39.4", Black

Vinten
SKU: VOV40020002 MFR: V40020002

List Price: $50,015.00

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Our Price

$45,014.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Vinten V4002-0002

The Vinten Quattro is a unique and innovative four-stage pedestal with an extensive range of benefits for today's camera operator. Both the Quattro-L studio pedestal and Quattro-OBL outside broadcast pedestal provide an extensive height range and the opportunity to achieve lower angle shots, as well as an impressive on-shot stroke of 100 cm / 39.4 ".

A revolutionary pneumatic design ensures that the Quattro pedestals provide Perfect Balance throughout their four-stages of elevation, ensuring that they offer the exact support required for the camera operator to raise and lower the camera with minimal effort.

Vinten V4002-0002 Features

  • Portable for outside broadcasts
  • Ground clearance suitable for rough terrain
  • Cable guards and single wheel brake for ease of use

Vinten V4002-0002 Specifications

Payload
105 kg (231 lb)
Minimum height
With 200 mm wheels 49.8 cm (19.6")
With 160 mm wheels 46.8 cm (18.4")
Maximum height
With 200 mm wheels 149.8 cm (59")
With 160 mm wheels 146.8 cm (57.8")
Ground clearance
With 200 mm wheels 5 cm (2")
With 160 mm wheels 2 cm (0.8")
On-shot stroke
100 cm (39.4")
Doorway tracking width
98 cm (38.5")
Transit doorway width
Small steering ring 87 cm (34.3")
Large steering ring 91.3 cm (36")
Steering ring diameter
Small 58.9 cm (23")
Large 74 cm (29")
Maximum working pressure
16.3 bar (236 psi)
Relief valve pressure
18 bar (260 psi)
Weight (Pedestal)
117 kg (257 lb)
Weight (Trim)
Main (5 x 1.0 kg) 5.0 kg (11 lb)
Auxiliary (6 x 0.5 kg) 3.0 kg (6.6 lb)
Warranty
Vinten 1 year limited warranty
Mfr #
V40020002
SKU
VOV40020002
