| Projector Display System |
Single 0.65" DLP panel |
| Native Resolution |
1,920 x 1,080 |
| Number of Pixels |
2,073,600 |
| Lumens Brightness |
2,000 ANSI lumens |
| Contrast Ratio |
4,000:1 |
| Aspect Ratio |
16:9 |
| System |
NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L) |
| Frequency |
Fh: 31 - 91KHz, Fv: 48 - 85Hz |
| Color Gamut |
70% NTSC 1931 CIE |
| Computer Compatibility |
PC: VGA to 1080p, Mac: up to 1080p |
| HDTV Compatibility |
720p, 1080i, 1080p |
| Lens |
F= 2.41 - 2.97, Focal length= 20.72 - 31 mm Throw ratio: 1.4 - 2.14:1 Throw distance 3 - 32.8' (0.9 - 10 m) |
| Focus/Zoom Adjusting |
1.5x Manual optical zoom / Manual optical focus |
| Lens Shift |
No |
| Recommended Projection Size |
30 - 300" (0.75 - 7.6 m) |
| Keystone Correction |
Auto and manual: ±30 Deg. vertical |
| Projection Positions |
Front, rear, ceiling, table |
| Projection Tilt Option |
Yes |
| Built-in Speaker |
10W x2 |

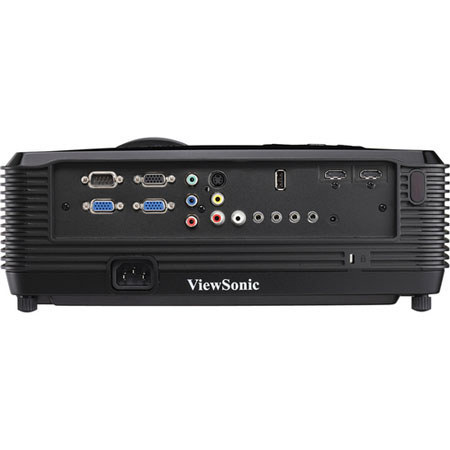

| Input Terminals |
HDMI 1.3 x2 RGB 15-pin mini D-sub x2 Component (RCA) x3 Composite (RCA) x1 S-video x1 USB x1 (firmware only) Audio 3.5mm mini jack x2 Audio RCA (L / R) x1 Mic 3.5 mm mini jack x1 |
| Output Terminals |
RGB 15-pin mini D-sub x1 Audio 3.5 mm mini jack x1 |
| Control |
RS-232 9-pin D-sub x1 DC 12V trigger x1 |
| Lamp (Bulb) |
230W Lamp life: 4,000 hours in Normal mode, 6,000 hours in Eco mode |
| Fan Noise |
31dB in Normal mode 27dB in Eco mode |
| Remote Control |
Yes |
| Power |
100 - 240 V AC, 50/60Hz Power consumption: 310W (max) / <1W (Standby mode) |
| Operating Temperature |
32 -104 Deg.F (0 - 40 Deg.C) |
| Operating Humidity |
10 - 90% (non-condensing) |
| Operating Altitude |
0 - 6,000' (1,800 m), operational up to 10,000' (3,048 m) |
| Regulations |
CB, RoHS, SVHC, WEEE, UL/cUL, FCC-B, ICES-004, TUV-S (Argentina), NOM, PSB, C-tick, KC, CE, GOST-R, Hygienic, UKrSEPRO, CCC |
| Dimensions (W x H x D) |
13.1 x 4.3 x 10.4" (332.7 x 110 x 264.2 mm) |
| Weight |
8.5 lbs (3.86 kg) |
