| Type |
Wide Color TFT Active Matrix LCD |
| Viewable Size |
23.6" |
| Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Brightness |
300 cd/m2 |
| Panel Surface |
Anti-Glare, hard coating |
| Life Expectancy |
30,000 hr |
| Contrast Ratio |
1000:1 static, 10,000,000:1 dynamic |
| Viewing Angle |
Horizontal: 170deg. |
| Frequency |
Horizontal: 24-82kHz Vertical: 50-75Hz |
| Sync Type |
H/V separated (TTL) |
| Analog |
15-pin mini D-sub (VGA) RGB analog (75 ohm) |
| Digital |
DVI-D (with HDCP) 1x DVI (100 ohms) |
| Audio Output |
2x Speakers: 1.5 W |

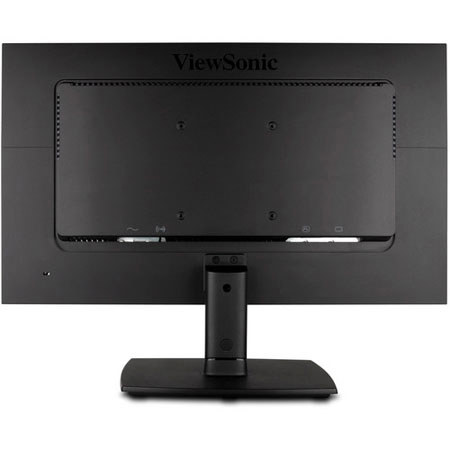

| Mount |
100 x 100mm VESA |
| Buttons |
Power, 1, 2, Up, Down |
| On-Screen Display |
Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, DVI), Audio adjust (Volume mute), Color Adjust, Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Eco-mode), Setup Menu, Memory Recall |
| Color Adjustment |
sRGB, 9300K, 7500K, 6500K, 5000K, User Color (R, G, B) |
| Tilt/Swivel Range |
Up: 20deg. Down: 5deg. |
| Compatibility |
PC: Up to 1920 x 1080 at 60 Hz (preferred) Mac: Up to 1920 x 1080 |
| Compliant Standards |
UL/cUL, FCC-B, ENERGY STAR, EPEAT(silver), Mexico Energy, NOM, WEEE, RoHS, CE, CB |
| Power Requirements |
Internal Power Board, 3-pin plug Voltage: 100 - 240 V AC (universal), +/-10% Wide Range Consumption: 28 W Optimize: 18W Conserve: 14.5W |
| Environmental Requirements |
Temperature: 32 - 104deg. F (0 - 40deg. C) Humidity: 10 - 90% (non-condensing)Contains Mercury, proper disposal required |
| Dimensions (WxHxD) |
With Stand: 22.1x16.4x7.9" / 561.34x416.56x200.66mm Without Stand: 22.1x13.1x2.3" / 561.34x332.74x58.42mm |
| Weight |
With Stand: 8.8lbs / 3.99kg Without Stand: 8.3lbs / 3.77kg |
