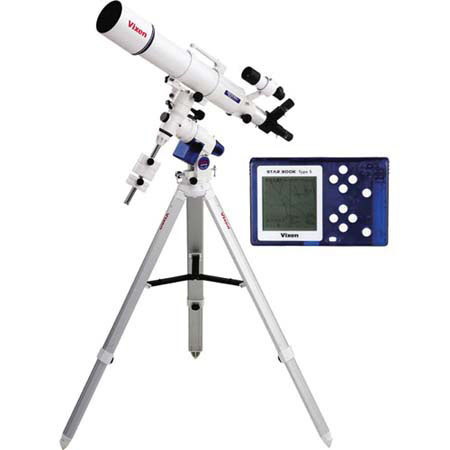

Vixen ED103S , 4.1", 103mm, Refractor Optical Tube with GPD2 Mount, HAL130 Tripod, Star Book S, NLV 25mm Eyepiece.
Mfr. Part: 99543 SKU: VXED103SGPDS
enlarge image
|
|
|
|
|
|
Item Includes
Vixen ED103S Optical Tube - 7x50 Finder - 2" Focuser - 1.25" Flip Mirror Diagonal - Tube Rings - Dovetail Plate - Great Polaris Deluxe (GPD2) Mount with Dual-Axis Drive - Bubble Level - Counterweight - Starbook S Controller - HAL130 Tripod -NLV 25mm Eyepiece - Instruction Manual - Vixen Warranty
|
Description
The Vixen ED103S is an apochromatic refractor, with fantastic contrast and a 4" aperture, sufficient for viewing most of the planets and many stars. With its ED glass elements, chromatic aberration has been reduced to nearly undetectable levels, permitting a much more practical use of the higher magnifications quoted in the specifications.
Vixen's ED Glass has brought refractors back to the forefront of premium telescope choices, to compete with the 8" and larger ubiquitous Schmidt-Cassegrains that bring in enormous quantities of light but simply cannot compare to the contrast of the apochromatic refractor. The included flip-mirror adapter allows either 90° or straight-through observing. With an eyepiece upon each end of the flip-mirror, you can quickly switch between the two as the declination of your object of interest changes its location in the sky.
The GPD2 equatorial mount is the stronger and heftier of the GP mounts. With it's solid steel R. A. and Declination axes and brass worm gears this mount will hold up to years of heavy use. In order to assure accurate tracking for astrophotography the worm, gears are especially machined to a very high precision that minimizes periodic error. Add the new Vixen Starbook S with built in starchart for complete Go-To capabilities.
The GPD2 holds almost 50% more weight than the GP2 and comes standard with tripod and counterweight. It is easy to use and functions well for both the visual observer and astrophotography. Motion is controlled by included control knobs for accurate slewing. The polar altitude adjustment varies from 0° to 62° in altitude. |
Features
 |
With its ED glass elements, chromatic aberration has been reduced to nearly undetectable levels |
|
The included flip-mirror adapter allows either 90 or straight-through observing |
|
With an eyepiece upon each end of the flip-mirror, can quickly switch between the two as the declination of object of interest changes its location in the sky |
|
The GPD2 equatorial mount is the stronger and heftier of the GP mounts |
|
With it's solid steel R. A. and declination axes and brass worm gears this mount will hold up to years of heavy use |
|
In order to assure accurate tracking for astrophotography the worm, gears are especially machined to a very high precision that minimizes periodic error |
Specifications
| ED103S Type | Refractor |
| ED103S Objective Diameter | 4.1" (103mm) |
| ED103S Focal Length | 31.3" (795mm) |
| ED103S Focal Ratio | f/7.7 |
| ED103S Tube Length | 32.3" (820mm) |
| ED103S Tube Diameter | 4.5" (115mm) |
| ED103S Tube Weight | 7.9 lbs (3.6 kg) |
| ED103S Finder/Visual/Mounting | 7 x 50mm; 2" holder, 1-1/4" flip mirror w/T-threads; tube rings/dovetail plate |
| ED103S Backfocus | 5.9" (150mm) |
| ED103S Backfocus with focal reducer | 4" (101.4mm) |
| GP-D2 R.A. Micro-Movement Axis | Whole Circle Movement 144-Tooth Worm Gears |
| GP-D2 Declination Micro-Movement Axis | Whole Circle Movement 144-Tooth Worm Gears |
| GP-D2 R.A. & Declination Circles | Supplied, R.A. Graduation is 10' increment, Declination Graduation is 2-degree increment |
| GP-D2 Optional Polar Axis Scope | For Northern & Southern Hemispheres. 6 X 20mm 8-degree detachable, with illuminator, 3' polar alignment accuracy possible |
| GP-D2 Azimuth Fine Adjustment | Adjustment Knobs |
| GP-D2 Polar Axis Altitude Adjustment | 0-62 degree adjustment knobs |
| GP-D2 Bubble Level | Supplied |
| GP-D2 Maximum Load Weight | Approximately 30 lbs |
| Warranty | Vixen warranty |
| | |
|
|
|
|
|
|
|
|
|
|
|
