About Vixen Polarie Star Tracker

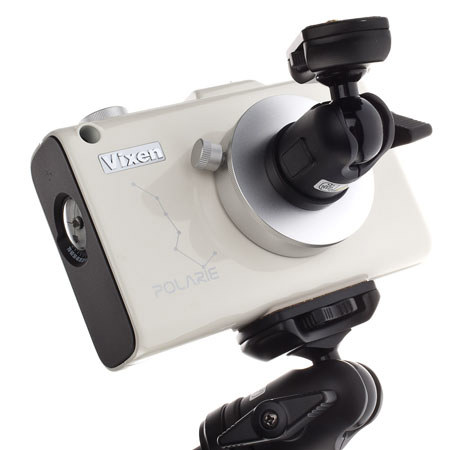

The Vixen 35505P1 Polarie Star Tracker with Tripod is designed for Astrophotography. This compact mount platform allows you to capture night scapes and star images with ease. The Polarie attaches to a standard camera tripod and can accept any digital camera weighing up to 3.5lbs. Using the included compass on the Polarie, orient the mount to face north.

The Polarie features a North Star alignment window that you point at Polaris. The Polarie can also use a polar scope for alignment. Once set, the Polarie tracks with the motion of the stars to eliminate "star trailing" on your images resulting in sharp images of the Universe. The Polarie uses very accurate stepping motors and operates on 2 "AA" batteries.

Polarie is designed to not only be functional, but also to be compact and attractive. The Polarie has a smooth, good looking design. The unit has no visible screws and although, not waterproof, it is designed to function in most weather conditions.

Vixen Polarie Star Tracker Specifications

Tracking Mode
Celestial tracking rate, 1/2 of celestial tracking rate. Solar tracking rate (Mean solar time), Lunar tracking rate (Mean lunar time): Usable in both northern and southern hemispheres
Wheel Gear
57.6mm diameter aluminum alloy axis with full-circle 144-tooth
Worm gear
9mm diameter high tension brass
Bearings
2 pieces
Drive
Pulse Motor (Stepper Motor)
Polar sight hole
About 8.9 Deg. field of view
Working voltage
2 x AA-size batteries: DC2.4 - 3.0V
External power supply: DC4.4 - 5.25V
Duration of operation
About 4 hours: At 20 C (68 F) degrees temperature, a 1.5kg (3.3 lbs) loading weight with use of Alkaline batteries
Legs
4 section
Minimum Tripod Length
555 mm (22")
Working Height
Adjustable from 540 mm to 1778 mm (21.2 to 70 inches)
Elevator pole extension
Geared part: 200 mm (7.9"), Friction up and down part (Center column): 290mm (11.4")
Maximum loading weight
Polarie Star Tracker: 3.4 lbs / 1.54 kg
Tripod: About 3.0 kg (6.6 lbs)
Camera thread size
UNC 1/4 inch
Dimensions
95 x 137 x 58 mm (3.7 x 5.9 x 2.3")
Weight
Without Batteries: 1.4 lbs / 0.63 kg
Without Pan Head: 1.98 kg (4.3 lbs)
