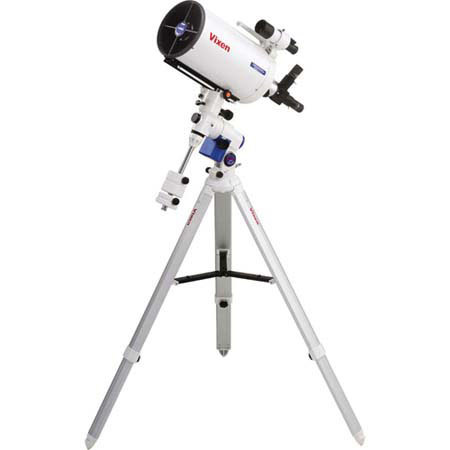

| VMC200L Construction |
Catadioptric reflector |
| VMC200L Diameter |
200mm (8") |
| VMC200L Focal Length |
1950mm, f/9.75 |
| VMC200L Primary Mirror |
f=500mm, f/2.5 |
| VMC200L Magnification |
3.9x |
| VMC200L Secondary mirror |
72mm |
| VMC200L Distance primary secondary |
~330mm |
| VMC200L Central obstruction |
80mm diameter (40% of d) |
| VMC200L Theoretical resolution (Dawes) |
0.63" |
| VMC200L Theoretical min magnitude |
13.3 |
| VMC200L Tube length |
~525mm incl. focuser |
| GP2 Mount R.A Axis |
144 tooth worm gears |
| GP2 Mount Declination Axis |
144 tooth worm gears |
| GP2 Mount R.A. graduations |
Optional |
| GP2 Mount Dec graduations |
Optional |
| GP2 Mount Polar Axis Scope |
Optional |
| GP2 Mount Polar Axis Altitude adjustment |
0 to 62 degrees |
| GP2 Mount Azimuth Adjustment |
with fine adjustment screws |
| GP2 Mount Maximum loading weight |
7kg |
| Weight |
VMC200L: 5.9kg GP2 Mount Counterweight: 1 x 3.7kg |
| Warranty |
Vixen warranty |
