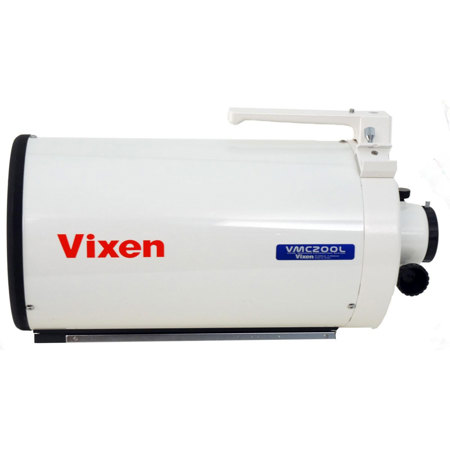

Vixen VMC200L 8" Catadioptric Reflector OTA Telescope Tube with Compression ring

SKU: VXVMC200LSX MFR: 5829

Our Price

$1,099.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $1,540.00

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Vixen VMC200L: Picture 1 regular $1,099.00

About Vixen VMC200L

The VMC200L is a unique catadioptric optical system. It incorporates a primary mirror and a meniscus corrector just before a secondary mirror. By doing so, light is corrected twice on the optical path. The end result is that spherical aberration and field curvature are corrected to a high degree of optical performance.

The VMC200L's primary mirror is f/2.5; the compound optical system is f/9.75. This makes the system much more compact and portable than its competition. With the optical correction placed before the secondary mirror, the VMC200L avoids the necessity of having a corrector plate and all the dewing problems associated with a closed optical tube.

An additional key feature is the rack and pinion focusing that is placed behind the primary mirror. The use of this focusing system eliminates the image shift associated with most other SCT systems. This is especially important when using high power magnification or astro-photography. When focusing, the image is stable and easy to adjust.

Vixen VMC200L Features

  • The Vixen VMC200L corrects light twice on the optical path, resulting in a high level of optical performance.
  • Optical correction is placed before the secondary. With no corrector plate, dew problems are almost non-existent.
  • Rack & pinion focusing is placed behind primary mirror, resulting in zero image shift.
  • This unique modified Cassegrain is very portable, and even includes a built-in handle.

Vixen VMC200L Specifications

Construction
Catadioptric reflector
d=200mm (8")
f=1950mm, f/9.75
Primary Mirror
f=500mm, f/2.5
Secondary Mirror
d=72mm, magnification 3.9x
Distance Primary Secondary
~330mm
Central Obstruction
80mm diameter (40% of d
Theoretical Resolution (Dawes)
0.63"
Theoretical Min Mag
13.3
Tube Length
~525mm incl. focuser
Tube Weight
5.9kg
Warranty
Vixen 5 year warranty
Mfr #
5829
SKU
VXVMC200LSX
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  does it come with a tripod ? if not how much and what kind ?
Julius B  Your discription says this unit comes with a handle as pictured; I assume it also comes with the dove rail as well? Please confirm. Thank you.
Andrew R  Yes, I believe that a mounting rail is included.
