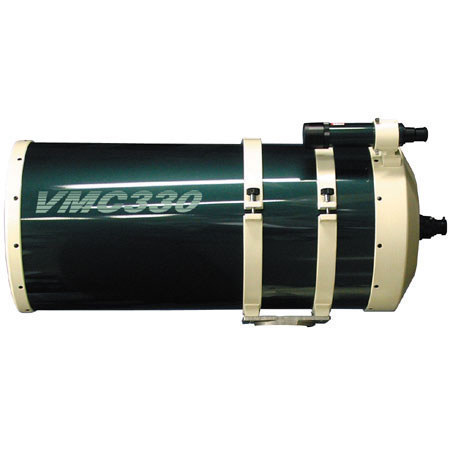

Vixen VMC330L, 15" Catadioptric Reflector Optical Tube with Finder Scope
What's Included With This Item:
- Tube Rings and Plate, 7x50 Finder Scope, 5 Year Warranty,
Ways to Save
Big 13" Aperture! Opens a New Window into Deep-Space...
With over 272% of the light gathering power of our 8" scopes, this unique system makes it possible to offer a Maksutov-Cassegrain-like design in a big but manageable package.
Consisting of Pyrex primary and secondary spherical mirrors, Vixen's improvement of Maksutov's design is the incorporation of a 2-element corrector lens in front of the secondary mirror.
This system tidily corrects spherical aberration and field curvature. It also eliminates the need for a big, expensive and heavy front corrector plate found in conventional Maksutov designs.
In addition, the resulting open tube design excludes the possibility of dew condensing on a full-aperture corrector.
Focusing is via primary mirror movement and optical collimation is accomplished by secondary mirror adjustments, just like on the smaller Schmidt-Cassegrains telescopes many amateurs are accustomed to.
The VMC330L OTA comes supplied with 2" eyepiece adapter, dual T-thread flip-mirror with dual 1¼" eyepiece adapters, 7x50mm finder and carry handle. Optional tube rings (#5625) and dovetail bar are available.
|Focal Length / F#||4320mm
|Optical Tube Length||36.8" / 935mm|
|Optical Tube Weight||44.1 lb. / 20 kg.|
|Tube Diameter||Objective Diameter: 330mm
Tube Diameter: 389mm
