Wiebetech ToughTech Duo QR Portable RAID Enclosure, Accepts Two 2.5" SATA Notebook Drives

SKU: WBTTDQ0 MFR: 36020-2510-0100
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

About this item

WiebeTech Toughtech Duo QR High Performance RAID Storage System boasts a passive thermal design for optimal heat dissipation, which requires no fans thus making Duo ultra quiet. Duo has front-accessible lockable trays, an intelligent LCD menu system, Kensington Lock, host connection LEDs and a vertical stand. It connects to any host computer via FireWire 800 (400 compatible), USB 2.0 and eSATA using an extremely fast Oxford 936 chipset. If needed, an AC power supply is also included.

Access SMART data (Self-Monitoring, Analysis and Reporting Technology) directly on the LCD menu to track drive temperatures and help prevent drive failure. Companion software (Win/Mac compatible) allows you to configure what temperature the warning LEDs turn on and/or the audible alarms sound.

Most FireWire ports have adequate power to operate ToughTech Duo, maximizing portability. ToughTech Duo can also supply power over a FireWire cable while allowing a data connection over the faster eSATA port. An AC power supply is also included, along with plugs for US, European, UK and Australian wall connections.

Innovative trays used in ToughTech Duo allow you to swap a drive in a matter of seconds. Mount drives without screws for quick and safe access or screw down the drives in environments where additional protection is needed. This feature may be used to eject a drive to share with a colleague or replace both drives to access a 2nd RAID set.

What's Included With This Item

  • Wiebetech Toughtech Duo QR Portable RAID Enclosure
  • FireWire Cables
  • Multi-country AC Power Supply: US, European, UK and Australian Plugs
  • Warranty

Key Features

  • Removable Trays: Trays are designed to be removed to allow quick and easy swapping of drives without tools and are rated for up to 25,000 insertions
  • Drives can be mounted with or without screws: Mount drives in trays without screws for quick and safe access or screw down the drives in environments where additional protection may be needed
  • Bus Powered: Bus powered via FW800 ports. Duo also allows power to be supplied over a FireWire cable while allowing data connection over the faster eSATA port
  • Multi-Country AC Power Supply (when required): Accepts 100-240VAC and comes with US, European, UK and Australian power plugs
  • RAID 0, 1 Operation: RAID 0 (stripe) for Data Performance, RAID 1 (mirror) for Data Protection
  • LCD Screen: Easily configure RAID settings and view SMART data
  • Quiet Operation: All-aluminum passive thermal design requires no fans
  • SATA compatibility: Works with common SATA 2.5" (9.5mm tall) notebook sized hard drives and Solid State Drives (SSD)
  • Kensington Lock: Use a standard Kensington lock cable to prevent theft
  • Fast Transfer Rates: Oxford 936 chipset achieves fast transfer rates through FireWire 800/400, USB 2.0 and eSATA

Technical Specs

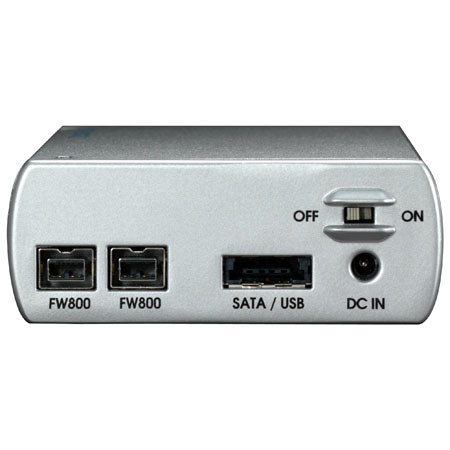

Host Interfaces eSATA and USB 2.0 Combo port, Dual FireWire 800, FireWire 400 (via included converter cable)
Data Interface Speeds eSATA 3 Gbps, up to 300 MB/s
FireWire 800, up to 800 Mbps
FireWire 400, up to 400 Mbps
USB 2.0, up to 480 Mbps
Drive Types Supported 2.5" (9.5mm tall) SATA hard drives
LED Indicators (on Front) Power Indicator
System Indicator
RAID Indicator
LED Indicators (on each tray) Power Indicator
Access Indicator
RAID Levels Supported RAID 0 (stripe) or RAID 1 (mirror)
Bridge/RAID Chipset Oxford 936DS
Drive Trays Yes
Sliding-lock Bays Yes
Operating System Requirements Windows 7, XP, Server 2003/2008, Vista
Mac OS X 10.2.6 or later
Linux distributions that support the desired connection
Operating Humidity 5% to 95%, noncondensing
Kensington Lock Yes
Power Switch 2 position On / Off
AC Power Supply Input 100-240V - 50-60Hz 0.6A
Output: 5V/3A 15 Watt Max (included)
Certification FCC, CE, CTick
External Material All-aluminum
Dimensions (W x L x H) 3.5" x 6.26" x 1.34" (89mm x 159mm x 34mm)
