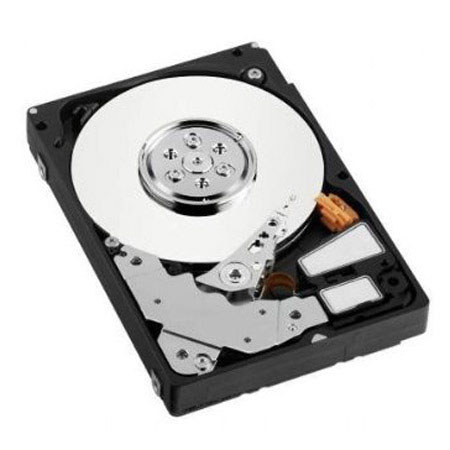

WD VelociRaptor 1TB 2.5" Internal Hard Drive, 10,000RPM, SATA 6 Gb/s Interface, 64 MB Buffer Size

SKU: WD1000CHTZ

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

WD 1TB Internal Drive Specifications

  • Interface

    SATA 6 Gb/s

  • Rotational Speed

    10,000 RPM (nominal)

  • Buffer Size

    64 MB

  • Load/unload Cycles

    600,000 minimum

  • Buffer To Host (Serial ATA)

    6 Gb/s (Max)

  • Capacity

    1 TB

  • User Sectors Per Drive

    1,953,525,168

  • Shock

    Operating Shock (Read): 65G, 2 ms
    Non-operating Shock: 300G, 2 ms

  • Acoustics

    Idle Mode: 30 dBA (average)
    Seek Mode 0: 37 dBA (average)

  • Temperature

    Operating: 41deg. F to 131deg. F (5deg. C to 55deg. C)
    Non-operating: -40deg. F to 158deg. F (-40deg. C to 70deg. C)

  • Current Requirements

    Power Dissipation
    Read/Write: 5.10 Watts
    Idle: 4.20 Watts
    Standby: 1.10 Watts
    Sleep: 1.10 Watts

  • Compatibility

    Operating System: Windows/Mac

  • Dimensions (H x D x W)

    0.59 x 3.95 x 2.75" (1.50 x 10.03 x 6.98cm)

  • Weight

    0.50lbs (0.23kg)

About WD 1TB Internal Drive

The WD VelociRaptor 1TB 2.5" SATA Internal Hard Drive offer an unmatched combination of high performance and high reliability, perfect for workstations, high-end video and photo editing, low-end servers and performance enthusiasts' systems.

WD 1TB Internal Drive Features

  • Ultra fast: Designed around a 10,000 RPM spin speed, these SATA 6 Gb/s drives include a 64 MB cache and deliver the ultimate performance for photo and video editing
  • Rock-solid reliability: With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive
  • High capacity: State-of-the-art technology delivers a balance of high performance and high capacity perfect for data-intensive workloads that require large amounts of storage such as video editing, 3D rendering and scientific modeling
  • Ultra-cool operation: Consumes less idle power and uses similar active power as the previous generation WD VelociRaptor, while offering higher capacity and performance
  • IcePack mounting frame: The 2.5" hard drive is enclosed in a backplane-ready 3.5" mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis
  • Pre-emptive Wear Leveling: Ensures reliability for applications that perform a high incidence of read/write operations at the same physical location on the disk
  • Advanced Format: Technology adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities
  • NoTouch ramp load technology: The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit
  • Environmentally conscious: In addition to being RoHS compliant, this generation of WD VelociRaptor also provides a halogen-free design
  • Rotary Acceleration Feed Forward: Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis
  • Ideal for: High-performance computing, 3D rendering, digital content creation and editing, scientific computing and image management
