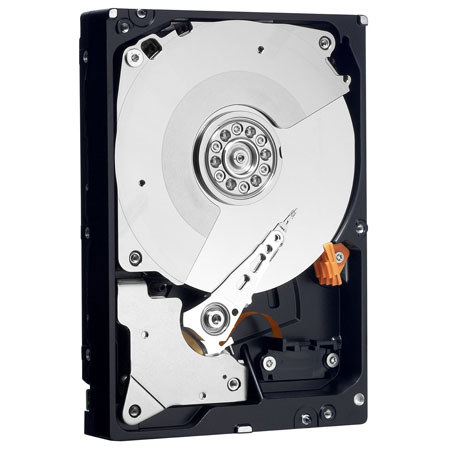

The WD WD RE4 Enterprise SATA Hard Drive (500GB) is coupled with dual processors, which has twice the processing power to maximize the performance. Advanced RAFF technology monitors the drive and corrects both linear and rotational vibration, thus ensuring optimum performance even in high vibration environments.
Featured motor shaft on both ends minimizes the system-induced vibration and stabilizes platters for accurate tracking, during read and write operations. IntelliSeek feature enables you to calculate the optimum seek speeds, thereby reducing power consumption, noise and vibration. Multi-axis shock sensor automatically detects the subtlest shock events, allowing you to protect the data. With TLER (Time-Limited Error Recovery) feature, the WD RE4 SATA Hard Drive minimizes drive fallout caused by the extended hard drive error-recovery processes. The NoTouch Ramp Load technology ensures that the recording head never touches the disk media, providing enhanced drive protection in transit. Thermal cycling makes sure that each drive is tested by an extended burn-in for reliable operation.
Consistency can be achieved with third generation dynamic fly height, which enables each read-write head's fly height to be adjusted in real-time. With 64MB cache, the 500GB SATA Hard Drive ensures faster data transactions by reducing the time required for data transactions. The 1.2 million hours MTBF (tested at 100% duty cycle) makes the hard drive more reliable. The WD RE4 Enterprise SATA Hard Drive is ideal for use in servers, video surveillance and other demanding write-intensive applications.
|User sectors per drive||976,773,168|
|Native command queuing||Yes|
|SATA latching connector||Yes|
|Data transfer rate (max)||Buffer to host: 3GB/s
Host to/from drive (sustained): 128MB/s
|Rotational speed (RPM)||7200|
|Average drive ready time (sec)||14|
|Bytes per sector (STD)||512|
|Non-recoverable read errors/bits read||<1 in 1015|
|Power Management||12VDC (A, max): 2.25|
|Average power requirements (W)||Read/write: 6.4
|Operating Temperature ( Deg.C)||5 to 55|
|Non-Operating Temperature ( Deg.C)||-40 to 70|
|Shock (Gs)||Operating (2 ms, read): 65
Operating (2 ms, read/write): 30
Non-operating (2 ms): 350
|Average acoustics (dBA)||Idle mode: 27
Performance seek mode: 30
Quiet seek mode: 29
|Dimensions (H x L x W)||1.028 x 5.787 x 4" / 26.1 x 147 x 101.6 mm|
|Weight||0.99 lbs / 0.45 kg|
