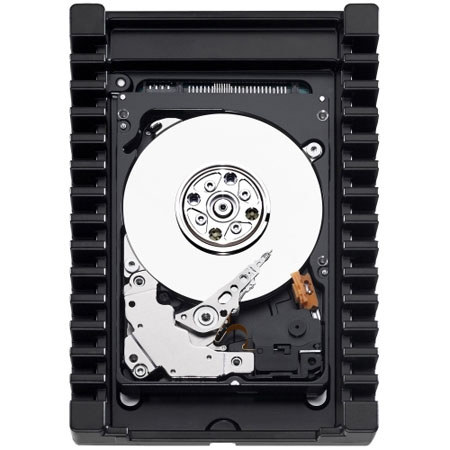

WD VelociRaptor 600GB Hard Drive, OEM Bulk Pack
See all WD items

WD VelociRaptor 600GB 3.5" Internal Desktop Hard Drive, 32MB Cache, SATA 6 Gb/s Interface, 10000 RPM Speed, OEM Bulk Pack

SKU: WD6000HLHX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

WD VelociRaptor 600GB Specifications

  • Interface

    SATA 6 Gb/s

  • Formatted capacity

    600,127MB

  • User sectors per drive

    1,172,123,568

  • Native command queuing

    Yes

  • SATA latching connector

    Yes

  • Actuator latch/auto park

    Yes

  • Form factor

    3.5"

  • RoHS compliant

    Yes

  • Data transfer rate (max)

    Buffer to host: 6 Gb/s
    Host to/from drive (sustained): 145MB/s

  • Cache

    32MB

  • Rotational speed (RPM)

    10,000

  • Average drive ready time (sec)

    7

  • Load/unload cycles

    600,000

  • Non-recoverable read errors/bits read

    <1 in 1015

  • Power Management

    12VDC (A, max): 1.8

  • Average power requirements (W)

    Read/Write: 6.4
    Idle: 4.3
    Standby: 0.7
    Sleep: 0.7

  • Operating Temperature ( Deg.C)

    5 to 55

  • Non-Operating Temperature ( Deg.C)

    -40 to 70

  • Shock (Gs)

    Operating (2 ms, read/write): 30
    Operating (2 ms, read): 65
    Non-operating (2 ms): 300

  • Average acoustics (dBA)

    Idle Mode: 27
    Performance seek Mode: 34

  • Dimensions (H x L x W)

    1.028 x 5.787 x 4" / 26.1 x 147 x 101.6 mm

  • Weight

    1.08 lbs / 0.49 kg

About WD VelociRaptor 600GB

The WD WD6000HLHx VelociRaptor 600GB 3.5" Desktop Hard Drive delivers maximum speed and reliability for performance enthusiast systems, workstations and low-end servers. With a superbly engineered combination of 10,000 RPM spin speed, SATA 6 Gb/s interface and a 32MB cache, this drive is truly an evolution in performance.

WD VelociRaptor 600GB Features

  • Ideal For: Performance enthusiast systems, workstations and low-end servers
  • Fastest SATA hard drive on the planet: 10,000 RPM, 32MB cache and a SATA 6 Gb/s interface gives gamers the speed advantage they crave
  • Rock-solid reliability: Best-in-class 1.4 million hour MTBF makes this the most reliable SATA hard drive around
  • SATA 6 Gb/s interface: Twice the interface speed with backwards compatibility to legacy SATA standards
  • IcePack mounting frame: The 2.5-inch WD VelociRaptor is enclosed in a backplane-ready 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis
  • Killer speed: SATA 6 Gb/s interface and 32MB cache enhance the next generation 10,000 RPM WD VelociRaptor making it up to 15% faster than the award-winning previous generation
  • Rotary Acceleration Feed Forward (RAFF): Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis
  • NoTouch ramp load technology: The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit
  • Environmentally conscious: In addition to being ROHS compliant, this generation of WD VelociRaptor is also a halogen-free design
