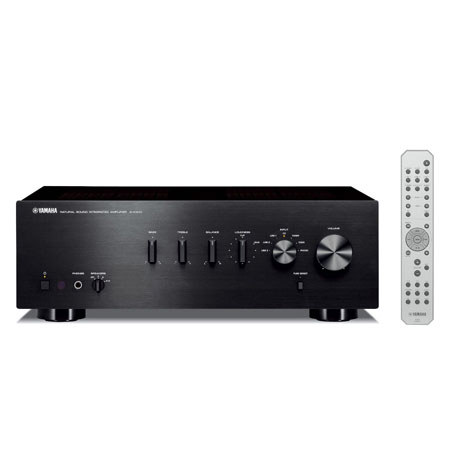

Yamaha A-S300 Integrated Amplifier, 95W x 2 (Max) & 60W x 2 (RMS) High Power Output, Black
What's Included With This Item:
- Yamaha A-S300 Integrated Amplifier
- Remote Control
- Yamaha Warranty
The Yamaha A-S300 Integrated Amplifier (Black) would make a great amp for a starter hifi system or a secondary room. The amplifier boasts a power output of 2 x 60W RMS which will confidently drive bookshelf and floor standing speakers in a normal domestic environment to high levels.
Short signal paths ensure noise is minimized, if you do not need to use the tone controls they can be defeated with a Pure Direct button for best sound quality. Two sets of speakers may be connected and switched, ideal for a second pair of speakers in another room.
The mechanical anti-resonance centre bar in the enclosure strengthens and prevents the sound in the room vibrating the critical internal components, ensuring the cleanest reproduction for an amplifier in its class.
An iPod dock connector on the rear allows all of the Yamaha iPod docks to work flawlessly with your iPod and also gives an independent power supply to the rest of the amplifier, for maximum noise immunity. With the on-board phono input (moving magnet compatible), you can even connect your turntable and enjoy that unmistakable warmth and lush sound from your cherished LP's.
|Maximum Power||95 W + 95 W|
|Minimum RMS Output Power||60 W + 60 W|
|Dynamic Power per Channel||100/120/140/150 W|
|Input Sensitivity/Impedance||Phono (MM): 3 mV/47 k-ohms
CD etc: 200 mV/47 k-ohms
|Output Level/Impedance||200 mV/1 k-ohms|
|Frequency Response||10 Hz-100 kHz ±1 dB|
|Total Harmonic Distortion||Phono (MM) (20 Hz-20 kHz) Rec Out (3 V): 0.025%
CD etc (20 Hz-20 kHz) Sp Out: 0.015% (30 W/8 ohms)
|Signal-to-Noise Ratio||Phone (MM) (Input Shorted, 5 mV): 88 dB
CD etc [Pure Direct On, Input Shorted, 200 mV)]: 100 dB
|Residual Noise (IHF- Network)||30 uV|
|Volume Variable Range||-89.5dB - +16.5dB|
|Cont. Loudness Control Characteristics||-30 dB (1 kHz)|
|Gain Tracking Error (0 - 99 dB)||0.5 dB|
|Audio In / Out||6 / 2|
|Standby Power Consumption||0.5 W|
|YID-W10 Standby Power Consumption||1.2 W|
|iPod Connected Standby Power Consumption||25 W|
|Power Management (Auto Power Off)||Yes (6 hours)|
|Dimensions (W x H x D)||435 x 151 x 387 mm/17.12 x 5.94 x 15.23"|
