Yamaha FC9 Dual Volume Control Foot Controller

SKU: YAFC9 MFR: FC9

Our Price

$120.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: On Backorder On Backorder - This item is currently back-ordered by the manunufacturer. Although we have no estimated time of arrival of this item, you can order it now and it will ship as soon it arrives. Your card will only be charged once item is shipped.

Free Shipping

See all shipping options

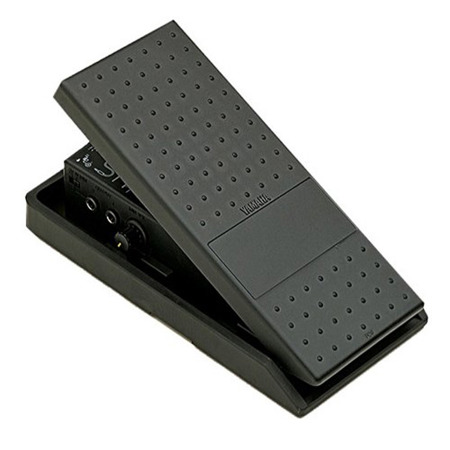

Yamaha FC9: Picture 1 regular $120.00

About Yamaha FC9

With two input and output jacks, the FC9 provides all you need in a foot controller. Control the audio volume of two separate instruments through separate 1/4" jacks. MIN VOL control allows you to set the volume range as desired. Solid construction provides for stability and security.

Yamaha FC9 Specifications

Pedal Angle
30 deg.
Maximum Input Level
+8 dBm (9V battery use)
Input Impedance
10 kOhms
Resistance at MAX position
0 dB
Resistance at MIN position
-20 dB (Min VOL "10" setting)
-70 dB or greater (Min VOL "10" setting)
Output Impedance
560 Ohms
Input-Output Phase
In-Phase
CV position output characteristics
850 kOhms (stereo phone plug inserted into output 2 jack)
LED Battery Indicator
Yes
Battery (006P)
9 V
AC adapter (PA-18)
12 V
Power Consumption
5m A
Dimensions (W x H x D)
116 x 62 x 246mm / 4.57 x 2.44 x 9.69"
Weight
2.9lbs / 1.32kg
Mfr #
FC9
SKU
YAFC9
