Yamaha YHT-699U 5.1-Channel Network AV Home Theater System, 6.5" 100W Powered Subwoofer, Full Discrete Amp Configuration

Yamaha
SKU: YAMYHT699UBL MFR: YHT-699UBL

List Price: $749.95 Get $36.00 Reward

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
20% Off

Our Price

$599.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • 5.1 channel surround sound w/ 6.5" subwoofer
  • Dolby TrueHD
  • DTS-HD Master Audio
  • Dolby Digital Plus
  • DTS-HD High Resolution Audio
  • Full discrete amp configuration
  • Burr Brown 192 kHz / 24-bit DACs for all channels
  • Direct Mode for high-quality sound reproduction

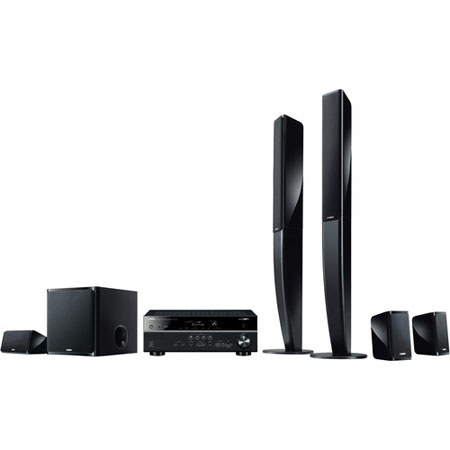

Yamaha YHT-699U: Picture 1 regular $599.95

About Yamaha YHT-699U

The Yamaha YHT-699U 5.1-Channel Network AV Home Theater in a Box includes front and surround speakers, as well as a center speaker and an active subwoofer. The system features full discrete amp configuration and up to 115W of power per speaker channel. It's compatible with both Dolby TrueHD and DTS-HD audio decoding. Plus, all channels are equipped with 192 kHz / 24-bit Burr Brown DACs, as well as low jitter PLL circuitry for optimized sound imaging. The YHT-699U features five HDMI inputs and an HDMI output that support 4K pass-through, 3D pass-through and CEC functionality. It also provides AirPlay streaming with the AV Controller app, as well MHL (Mobile High-Definition Link) for sending up to Full HD 1080p video and multi-channel audio through the receiver and onto a compatible HDTV.

The YHT-699U has a variety of other connectivity options. There are multiple analog video and audio connections, as well as dual optical and coaxial digital audio inputs. There is also a front panel USB port where you can hook-up your iPod, iPhone, iPad USB thumb drive or other USB-equipped digital music player. The USB port supports charging of your iPod, iPhone or iPad as well. There's also a multi-language color on-screen display that makes it easy to see the system settings. When using the AV Controller app, you can easily operate various functions from your iPod, iPhone, iPad or Android mobile device.

The YHT-699U is equipped with AM/FM radio and 40-station presets. It features a compressed music enhancer as well, which improves the sound quality of MP3 files and other compressed music files. The integrated subwoofer output features phase select and the receiver also supports nine selectable subwoofer crossover frequencies. Plus, the YHT-699U affords YPAO sound optimization for automatic speaker setup. There are also multiple SCENE buttons. And, it even features an Eco-mode for energy conservation.

Yamaha YHT-699U Features

  • Audio: 5.1-channel powerful surround sound with a 6.5" 100W powered subwoofer and 115W per speaker channel (8 ohms, 1 kHz, 0.9 % THD, 1 ch driven) or 80W per speaker channel (8 ohms, 20 Hz - 20 kHz, 0.09 % THD, 2 ch driven)
  • Audio: Supported HD audio decoding formats include Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus and DTS-HD High Resolution Audio
  • Audio: Full discrete amp configuration
  • Audio: Burr Brown 192 kHz / 24-bit DACs for all channels
  • Audio: Direct Mode for high-quality sound reproduction
  • Audio: Low jitter PLL circuitry helps optimize sound imaging
  • Audio: FLAC or WAV 192 kHz / 24-bit audio playback
  • Audio: Full-range speaker system
  • Video: Supports 4K pass-through for next-generation super high resolution images
  • Video: HDMI (5 inputs / 1 output) supports playback of 3D sources and audio return channel (ARC)
  • Video: Supports Deep Color (30/36-bit), x.v.Color, 24 Hz refresh rate and Auto Lip-Sync compensation
  • Network: AirPlay allows music streaming from Mac, PC, iPod, iPhone and iPad
  • Network: AV Controller app for operating various functions from an iPod, iPhone, iPad or Android mobile devices
  • Network: Access to streaming services including Pandora and music files on your PC/NAS including WAV, MP3, WMA, AAC and FLAC
  • Network: DLNA 1.5 certified
  • Equipped with quick and simple to use SCENE buttons with direct power on function for BD/DVD, TV, Net and radio
  • HDMI CEC powers up compatible TVs and Blu-ray disc players
  • MHL (Mobile High-Definition Link) supports Full HD 1080p video and multi-channel audio from MHL-compatible mobile phones and portable devices. It also charges the connected devices
  • Front panel USB digital connection for iPod, iPhone, iPad, USB thumb drives and other USB audio devices
  • Supports charging of iPod, iPhone and iPad via USB even when AV receiver is off
  • iPod, iPhone and iPad song titles displayed on the front panel
  • Multi-language color OSD for improved visibility
  • HDMI CEC with versatile control from AV receiver remote control
  • YPAO sound optimization for automatic speaker setup
  • Audio input assign capability for HDMI and component video input

Yamaha YHT-699U Specifications

Channels
5.1
DAC Type
192 kHz / 24-bit Burr Brown DACs (for all channels)
Rated Power Output
Front Channels: 115 W + 115 W (8 ohms, 1 kHz, 0.9% THD, 1ch driven)
Front L/R: 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.09 % THD, 2 ch driven)
Center Channel: 115 W (8 ohms, 1 kHz, 0.9% THD, 1ch driven)
Surround Channels: 115 W + 115 W (8 ohms, 1 kHz, 0.9% THD, 1ch driven)
Dynamic Power
Front L/R (8 ohms): 110 W
Front L/R (6 ohms): 130 W
Front L/R (4 ohms): 160 W
Front L/R (2 ohms): 180 W
Audio Delay
0 - 250 ms (for adjusting Lip-Sync)
Inputs
HDMI (audio input assignable; HDMI 5 is MHL compatible) x 5
Network (RJ-45) x 1
USB x 1
FM radio antenna x 1
AM radio antenna x 1
Optical digital x 2
Coaxial digital x 2
Analog audio x 4
Component video (audio input assignable) x 2
Composite video x 5
Audio mini-jack x 1
Outputs
HDMI x 1
Analog audio x 1
Component video monitor x 1
Composite monitor x 1
Composite AV x 1
Speaker jacks (without subwoofer) x 5 channels
Subwoofer jack x 1
Headphone jack x 1
DC out x 1 (for optional accessories)
Frequency Response
25 Hz - 46 kHz
Magnetic Shielding
Yes
Impedance
6 ohms (except subwoofer)
Front Speakers
Type: Bass reflex
Driver (Cone Woofer): 2.75" (7.0 cm) x 2
Driver (Balanced Dome Tweeter): 1" (2.5 cm)
Input Power (Max / Nominal): 100 W / 30 W
Sensitivity: 85 dB / 2.83 V / 1 m
Center Speakers
Type: Full-range acoustic suspension
Driver: 2.75" (7.0 cm) full-range cone
Input Power (Max / Nominal): 100 W / 30 W
Sensitivity: 84 dB / 2.83 V / 1 m
Surround Speakers
Type: Full-range bass reflex
Driver: 2.75" (7.0 cm) full-range cone
Input Power (Max / Nominal): 100 W / 30 W
Sensitivity: 84 dB / 2.83 V / 1 m
Subwoofer Speakers
Type: Advanced YST II
Driver: 6.5" (16.5 cm) cone
Dynamic Power: 100 W
Standby Power Consumption
0.1 W
Dimensions (WxHxD)
Receiver: 17.1x6.4x12.4" / 43.4x16.25x31.49 cm
Front Speakers: 9.0x39.4x9.0"/ 22.86x100.07x22.86 cm with stand
Center Speaker: 10.9x4.4x4.6" / 27.68x11.17x11.68
Surround Speakers: 4.4x6.9x4.6" / 11.17x17.52x11.68 cm
Subwoofer: 11.4x11.5x12.9" / 28.95x29.21x32.76
Weight
Receiver: 17.9 lb (8.1 kg)
Front Speakers: 6.2 lb (2.8 kg) / each
Center Speaker: 1.6 lb (0.7 kg)
Surround Speakers: 1.3 lb (0.6 kg) / each
Subwoofer: 17.6 lb (8.0 kg)
Mfr #
YHT-699UBL
SKU
YAMYHT699UBL
