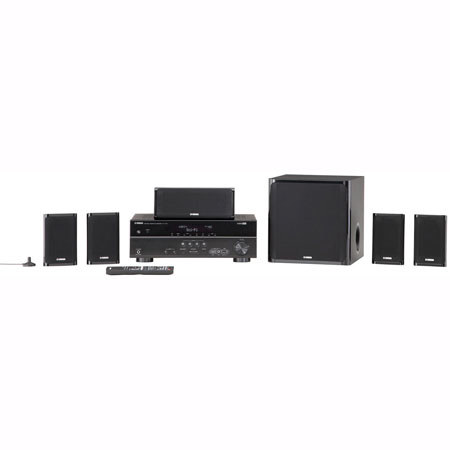

| Amplifier Channel |
5.1 |
| Rated Output Power (1kHz, 1ch driven) |
100W (8ohms, 0.9% THD) |
| Rated Output Power (1kHz, 2ch driven) |
85W (8ohms, 0.9% THD) |
| Dynamic Power per Channel(8/6/4/2 ohms) |
110/130/160/180W |
| CINEMA DSP |
Yes |
| DSP Programs |
17 |
| Compressed Music Enhancer |
Yes |
| SILENT CINEMA / Virtual CINEMA DSP |
Yes |
| Dolby TrueHD |
Yes |
| Dolby Digital Plus |
Yes |
| DTS-HD Master Audio |
Yes |
| YPAO sound optimization |
Yes |
| Adaptive DRC (Dynamic Range Control) |
Yes |
| Initial Volume & Maximum Volume Setting |
Yes |
| Audio Delay |
Yes (0-250 ms) |
| 192kHz/24-bit DACs for all channels |
Yes (Burr-Brown) |
| HDMI 3D passthrough |
Yes |
| HDMI Audio Return Channel |
Yes |
| Deep Color/x.v.Color |
Yes |
| 24Hz Refresh Rate /Auto Lip-Sync |
Yes |
| 4K Pass-through |
Yes |
| HDMI Input/Output |
4 / 1 |
| HDMI CEC |
Yes |
| USB Input |
iPod/iPhone, USB Memory, Portable Audio Player |
| Front AV Input |
USB/Mini Jack/Composite |
| Digital Audio Input/Output: Optical |
2 / 0 |
| Digital Audio Input/Output: Coaxial |
2 / 0 |
| Analog Audio Input/Output |
4 (front 1) / 2 |
| Component Video Input/Output |
2 / 1 |
| Composite Video Input/Output |
4 (front 1) / 1 |
| Preout |
Subwoofer |
| Headphone Output |
1 |
| FM/AM Tuner |
Yes |
| On-screen display |
Yes (Color OSD) |
| Scene |
Scene (4 sets) |
| Remote Control Unit |
Yes |
| ECO mode |
Yes |
| Standby Power Consumption (IR only) |
=0.3W |
| Auto Power Down |
Yes |
| Speakers Cabinet Type |
Plastic |
| Front Speaker Size |
2-3/4" full-range cone |
| Center Speaker Size |
2-3/4" full-range cone |
| Surround Speaker Size |
2-3/4" full-range cone |
| Subwoofer Power Output |
100W |
| Subwoofer Driver Size |
6-1/2" Cone |
| Dimensions( W x H x D) |
A/V Receiver: 17.12" x 6" x 12.37" / 43.48 x 15.24 x 31.41cm Front Speakers: 4.37"x 6.87"x 4.62" /11.09x 17.44 x 11.73cm Center Speaker: 10.87"x 4.32"x 4.62"/ 27.60 x 10.97 x 11.73cm Surround Speakers: 4.37"x 6.87"x 4.62" / 11.09 x 17.44 x 11.73cm Subwoofer: 11.37" x 11.50" x 12.87" / 28.87 x 29.21 x 32.68cm |
| Weight |
A/V Receiver: 16.5lbs /7.48kg Front Speakers: 1.3 lbs/0.58kg Center Speaker: 1.61lbs/0.73kg Surround Speakers: 1.3 lbs/0.58kg Subwoofer: 17.6lbs / 7.98kg |
