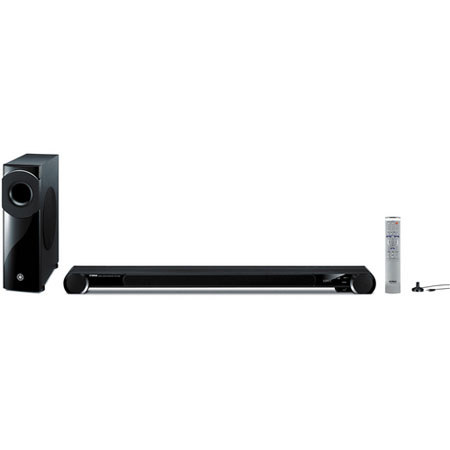

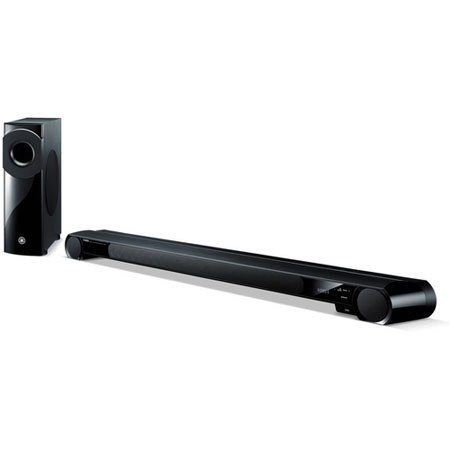

About the Yamaha YSP-4300

The Yamaha YSP-4300 Digital Sound Projector & Wireless Active Subwoofer features a brushed-metal finish with mirrored sides that are designed to match most HDTVs. The system features a wireless active subwoofer with Advanced YST technology, which reproduces rich and powerful bass. The system also features a sound bar with 22 array speakers and two woofers. It can either be mounted on a wall or it can rest right in front of your flat-screen TV. The wireless subwoofer also allows for flexible placement, since it doesn't need to be right next to the sound bar. The YSP-4300 uses Digital Sound Projector Technology to reproduce true 7.1-channel surround sound.

With 7.1-channel surround, the YSP-4300 is compatible with both Dolby TrueHD and DTS-HD surround sound. The system achieves true surround sound by directing beams of various walls at various angles. And, you can choose from a variety of different listening modes. The YSP-4300 also includes a microphone that you can use with the IntelliBeam function to automatically set the optimum sound field. It features a compressed music enhancer as well, which restores what your music loses during compression. The YSP-4300 also features four HDMI inputs and an HDMI output that support 4K pass-through, 3D pass-through and CEC functionality. It's even equipped with an FM tuner with 40 station presets.

The YSP-4300 supports UniVolume and Clear Voice technology as well. UniVolume keeps all programs and commercials at the same volume level, while Clear Voice enhances the clarity and volume of dialogue and narrations. You can also enjoy wireless streaming of audio from an iPod/iPhone/iPad or computer with the optional YIT-W12 Wireless Transmitter (sold separately). The YSP-4300 can store up to three of your favorite settings for playback mode, CINEMA DSP mode and IntelliBeam measurement results. It's equipped with a front panel USB port that will play music from your iPod, iPhone, iPad or other USB device. The USB port will also charge your device. The YSP-4300 also features an ECO Mode for energy conservation.

One reason why the Yamaha YSP-4300 is popular is because of its Attractive.

Yamaha YSP-4300 Includes

  • Yamaha Wireless Active Subwoofer
  • Center Unit
  • Remote Control
  • Power Cord
  • Spacer
  • Yamaha Warranty

Summary of Customer Reviews

Customers most agreed on the following attributes:
Attractive (5) , Easy to set up (3) , Great sound quality (3)
Reviewer Profile:
Movie enthusiast (3) , Tech savvy (3) , Audiophile (2) , High-end shopper (1)

Yamaha YSP-4300 Features

  • Premium Sound Bar Delivers Exceptional Audio Quality and Outstanding Surround Realism: The sound bar uses 22 array speakers controlled by Yamaha's YSP technology to produce powerful beams for extremely high-quality surround sound
  • Wireless Subwoofer with Advanced YST Technology: The subwoofer has a large 6-1/2" (16 cm) driver and uses Yamaha's exclusive Advanced YST technology to produce clear, powerful bass. The circuit board has an ideal grounding pattern that ensures stable current supply
  • Wireless Streaming with High Sound Quality from iPod/iPhone/iPad or Mac/PC: The optional YIT-W12 Wireless Transmitter, used with the YSP-4300, lets you enjoy music wirelessly from your iPod/iPhone/iPad or Mac/PC
  • Digital Sound Projector Technology: The YSP-4300 achieves true (not virtual) surround sound by producing beams of sound and using advanced processing to control their directions. You hear perfectly realized 7.1-channel surround sound with natural ambience and optimum imaging
  • HD Audio Format Decoding: The YSP-4300 decodes HD Audio signals to ensure that you hear the best possible sound from Blu-ray Disc players, as well as from all other digital sources
  • 10 CINEMA DSP Programs: Yamaha's ultra-sophisticated CINEMA DSP technology creates thrillingly realistic soundscapes in any room. You can select 10 different programs, including three "Movie," three "Music" and four "Entertainment" programs
  • Versatile Listening Modes: The YSP-4300 achieves true surround sound by directing sound beams off walls to reach the listener from various angles. The main mode is 5 BeamPlus2 for 7-channel sources
  • IntelliBeam Automatically Sets the Optimum Sound Field: This Yamaha exclusive feature ensures optimum multichannel sound reproduction with accurate image location
  • HDMI (4 in/1 out) with 4K Pass-through and 3D: Four HDMI inputs mean you can connect four high quality digital sources, each with just a single cable. The inputs support 4K pass-through, which allows the transmission of next-generation super high-resolution images and the transmission of 3D video
  • Compressed Music Enhancer: When music is encoded into a digitally compressed format like MP3, the frequency response suffers. This function restores what was lost, so your music always sounds the way it should
  • UniVolume Maintains the Same Volume Level: This welcome feature, made possible by Yamaha-developed technology, maintains a consistent volume level between different channels, programs, commercials and input sources. It can be switched on and off
  • Easy Positioning in Front of a TV: Only 3-3/8" (86 mm) high, the YSP-4300 can easily be placed in front of your TV without blocking the screen. The height can be adjusted in two levels by adding included spacers. It is also wall mountable with optional brackets
  • Design Conveys Luxury and Sophistication: The top surface of the sound bar is made of rigid aluminum with an elegant, brushed-metal finish, for a look that is stylish and imparts a strong feel of luxury. The sides have a mirror finish that harmonizes beautifully with flat-panel TVs
  • Wireless Active Subwoofer Allows Flexible Placement: This subwoofer eliminates the need to connect cables, so setup is faster and easier. It can be used in either a horizontal or a vertical position, providing additional flexibility
  • USB Digital Connection for iPod/ iPhone/iPad on the Front Panel: A USB terminal on the front panel makes it quick and easy to plug in your iPod, iPhone or iPad to enjoy stored music. The digital connection ensures that there is no data loss, maintaining optimum sound quality
  • Access to MP3 or WMA Tracks on USB Devices: The USB port also offers direct access to MP3 or WMA tracks on USB devices
  • HDMI CEC Functionality: When connected to a CEC-compatible TV, the YSP-4300 will turn on and off together with the TV and you can use the TV remote unit to control the volume. CEC also provides advanced functionality with other components
  • TV Remote Repeater: even if the YSP-4300 blocks the TV's remote control signal, the TV Remote Repeater on the back transmits the signal to the TV so operation is not affected
  • 40-station preset FM tuner
  • Memory function for recording up to three of your favorite settings
  • ECO mode for energy conservation
  • Easy-to-see on screen menu viewable in nine languages
  • Custom installation functions: Extended IR, RS-232C (RJ 12), IR in and IR pass-through out

Yamaha YSP-4300 Specifications

Output Channel 7.1-channel
Output Power 324 W total power: 2 W x 22 beam drivers + 75 W x 2 (woofer) + Dynamic 130 W subwoofer
Input / Output: HDMI 4 in / 1 out
Input / Output: Digital Optical 2 in
Input / Output: Digital Coaxial 1 in
Input / Output: Analog Audio 1 in
HDMI: Deep Color Yes
HDMI: x.v.Color Yes
HDMI: 3D Pass-through Yes
HDMI: Auto Lip-Sync Yes
Surround Technology Digital Sound Projector
CINEMA DSP Movie 3 (Sci-Fi, Adventure, Spectacle)
CINEMA DSP Music 3 (Concert, Jazz Club, Music Video)
CINEMA DSP Entertainment 4 (Sports, Talk Show, Drama, Game)
Listening Mode 5Beam, 5Beam Plus2, Stereo+3Beam, Stereo+3Beam Plus2, 3Beam, Stereo, Target and My Surround
UniVolume Yes
Compressed Music Enhancer Yes
Audio Formats: HD Audio Format Decoding Yes
Audio Formats: Dolby TrueHD Yes
Audio Formats: Dolby Digital Plus Yes
Audio Formats: Dolby Digital Yes
Audio Formats: Dolby Digital EX Yes
Audio Formats: Dolby Pro Logic Yes
Audio Formats: Dolby Pro Logic II Yes
Audio Formats: Dolby Pro Logic IIx Yes
Audio Formats: DTS-HD Master Audio Yes
Audio Formats: DTS-HD High Resolution Yes
Audio Formats: DTS Yes
Audio Formats: DTS-Neo 6 Yes
Audio Formats: DTS-ES Yes
Audio Formats: DTS 96/24 Yes
Audio Formats: LPCM Yes
Wireless Subwoofer Yes
Wireless Compatibility Yes (iPod/iPhone/iPad or Mac/PC via optional YIT-W12) via Yamaha Wireless Transmitter
yAired Yes
USB Yes (iPod/iPhone/iPad, USB Memory, Portable Audio Player)
FM Tuner Yes
IntelliBeam Yes
On-Screen Display Yes
On-Screen Display Languages English, German, French, Spanish, Italian, Russian, Dutch, Swedish and Japanese
ECO Mode Yes
Power Consumption (Center Unit) 60 W, (Subwoofer) 70 W
Standby Power Consumption (Center Unit) 0.5 W (HDMI control off, wireless interlock off)
Beam Drivers 1 1/8" (2.8 cm) x 22 beam drivers
Woofers Dual 2 1/2" (6.5 cm) woofers
Subwoofer 6 1/2" (16 cm) cone woofer with Advanced YST (vertical/horizontal)
Dimensions (WxHxD) Center Unit (with spacer): 43.4x3.9x6.3" (110.2x9.9x16cm)
Center Unit (without spacer): 43.4x3.4x6.3" (110.2x8.6x16 cm)
Subwoofer (Vertical): 5.7x17.6x14.6" (14.47x44.70x37.08cm)
Weight Center Unit: 15.2 lbs (6.9 kg)
Subwoofer: 19.8 lbs (9.0 kg)
