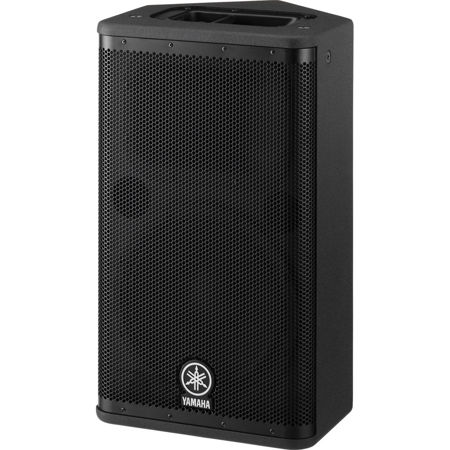

Yamaha DSR112 12" 1300W Active 2-Way Loudspeaker, 2" Titanium Compression Tweeter, 12" Neodymium Woofer

SKU: YMDSR112 MFR: DSR112
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,346.00 List Price

Our Price

$899.99 $35 per week
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About the Yamaha DSR112

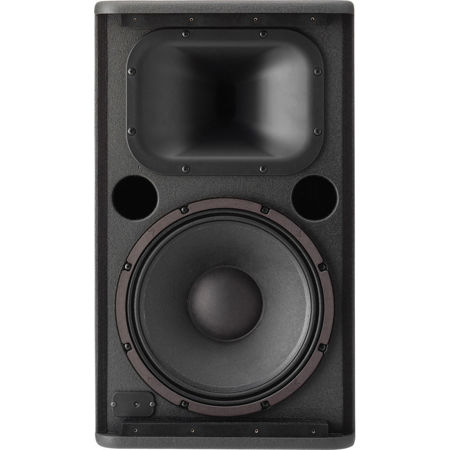

The Yamaha DSR112 is a professional-quality 2-way active loudspeaker, ideal for sound reinforcement or floor monitoring applications. The rugged cabinet houses a 12" woofer and a 2" titanium compression tweeter, both of which have neodymium magnets for maximum efficiency and low weight. Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern to reach a broad audience. Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance. XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers.

Onboard DSP includes FIR-X tuning for smooth crossover transitions and 24-bit AD/DA converters for maximum dynamic range. D-CONTOUR processing provides consistent clarity and high and low output levels. Extensive protection circuitry prevents damage from DC faults, clipping, overheating and over voltage. The speaker has a standard 35mm pole socket for mounting, as well as M10 rigging points for suspended installation. An integrated carrying handle provides easy transport.

Yamaha DSR112 Includes

  • Yamaha DSR112 12" 1300W Active 2-Way Loudspeaker
  • Power Cord
  • Yamaha Warranty

Yamaha DSR112 Features

  • Can be placed vertically or horizontally for sound reinforcement or floor monitoring applications
  • The rugged cabinet houses a 12" woofer and a 2" titanium compression tweeter, both of which have neodymium magnets for maximum efficiency and low weight. The drivers are custom-designed for premium quality
  • Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern of 90deg. x 60deg. to reach a broad audience
  • Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance
  • PFC switching mode power supply provides clean power with minimal HF noise, ensuring maximum power output and stable operation
  • XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers
  • Onboard DSP includes FIR-X tuning for smooth crossover transitions and linear phase response, while 24-bit AD/DA converters provide maximum dynamic range
  • D-CONTOUR processing provides consistent clarity and high and low output levels. This processing can be turned on or off depending on your environment and type of sound desired
  • Extensive 3-way fail-safe protection circuitry protects the amplifier modules, power supply and drivers from DC faults, clipping, overheating and over voltage to ensure reliable operation under the most severe conditions
  • A standard 35mm pole socket is built-in for mounting on a pole or stand, while M10 rigging points allow for suspended installation. An integrated carrying handle provides easy transport

Yamaha DSR112 Specifications

Type of speaker Active
Frequency Response 55Hz - 20kHz (-10dB)
60Hz - 18kHz (-3dB)
Amplifier Class-D, 1300W Total (850W LF, 450W HF)
Maximum Sound Pressure Level (SPL) 134dB
Input Sensitivity 0dBu (Line, Max)
+7dBu (Line, Center)
-25dBu (Mic, Max)
Input Level +24dBu (Line)
-11dBu (Mic)
Input Impedance 12 kOhms (Line)
8 kOhms (Mic)
Crossover 1.7kHz, FIR-X Tuning (Linear Phase FIR Filter)
Low Frequency Driver 12" Neodymium Cone Woofer with 3" Voice Coil
High Frequency Driver 2" Titanium Diaphragm Compression Tweeter with Neodymium Magnet
Coverage 90deg. Horizontal, 60deg. Vertical
Enclosure Material Grille: 16-Gauge Matte Black Powder Coated Perforated Steel
Connectors 1 x XLR Input
1 x 1/4" Input
1 x XLR Thru Output
1 x Locking AC Power Input
Controls 1 x Level Control
1 x Line/Mic Switch
1 x HPF Switch
1 x D-CONTOUR Switch
1 x Front LED Disable Switch
1 x Power Switch
Indicators 1 x Red Peak LED
1 x Red Limit LED
1 x Red Protection LED
1 x Green Power LED
1 x White Front LED
1 x Orange HPF LED
1 x Orange D-CONTOUR LED
Filters High-Pass Filter, 120Hz (-6dB) 24dB/Oct
D-CONTOUR (Dynamic CONTOUR) Boost
Protection Power Switch On/Off Mute
DC-Fault
Output Limit
Clip Limit
Overheating
Overcurrent
Over Voltage
Power PFC Switching Mode Power Supply
Consumption 100W (1/8 Power)
Cooling Natural Convection
Mounting 1 x Standard 35mm Pole Socket (Bottom)
3 x M10 Rigging Points (Top L/R, Bottom Rear)
1 x Metal Handle (Top)
Dimensions (WxHxD) 370x638x368mm / 14.5x25.1x14.4"
Weight 21.2kg (47lbs)
