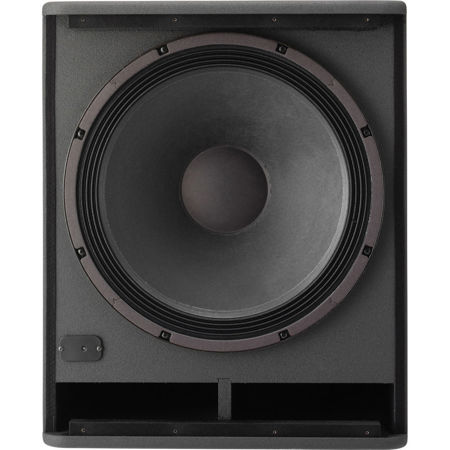

Yamaha DSR118W 18" 800W Active Subwoofer, 40Hz - 130Hz Frequency Range

Yamaha
SKU: YMDSR118W MFR: DSR118W
Yamaha DSR118W: Picture 1 thumbnail Yamaha DSR118W: Picture 2 thumbnail Yamaha DSR118W: Picture 3 thumbnail Yamaha DSR118W: Picture 4 thumbnail Yamaha DSR118W: Picture 5 thumbnail Yamaha DSR118W: Picture 6 thumbnail

List Price: $1,499.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
33% Off

Our Price

$999.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Yamaha DSR118W

The Yamaha DSR118W is a professional-quality active subwoofer, ideal for bass reinforcement of full-range DSR-series loudspeakers. The rugged bass-reflex cabinet houses an 18" ferrite cone woofer to provide frequencies as low as 40Hz. An internal Class-D amplifier provides 800W of output power for a strong, distortion-free performance. Parallel XLR inputs and outputs let you connect sound sources and daisy-chain multiple speakers and subwoofers.

Extensive protection circuitry prevents damage from DC faults, clipping, overheating and over voltage. The sub has a standard 35mm pole socket for mounting a speaker on top, while integrated carrying handles provide easy transport.

Yamaha DSR118W Features

  • Ideal for bass reinforcement of full-range DSR-series loudspeakers
  • The rugged bass-reflex cabinet houses an 18" ferrite cone woofer to provide frequencies as low as 40Hz. The driver is custom-designed for premium quality
  • Internal Class-D amplifier provides 800W of output power for a strong, distortion-free performance
  • PFC switching mode power supply provides clean power with minimal HF noise, ensuring maximum power output and stable operation
  • Parallel XLR inputs and outputs let you connect sound sources and daisy-chain multiple speakers and subwoofers
  • Extensive 3-way fail-safe protection circuitry protects the amplifier modules, power supply and driver from DC faults, clipping, overheating and over voltage to ensure reliable operation under the most severe conditions
  • A standard 35mm pole socket is built-in for mounting a speaker on top of the subwoofer. Integrated carrying handles provide easy transport

Yamaha DSR118W Specifications

Woofer Type
Active, Bass-Reflex
Frequency Response
40-130Hz (-10dB)
50-110Hz (-3dB)
Amplifier
Class-D, 800W
Maximum Sound Pressure Level (SPL)
132dB
Input Sensitivity
0dBu
Input Level
+24dBu
Input Impedance
10 kOhms
Low Frequency Driver
18" Ferrite Cone Woofer with 3" Voice Coil
Enclosure Material
Grille: 16-Gauge Matte Black Powder Coated Perforated Steel
Connectors
2 x XLR Inputs
2 x XLR Thru Outputs
1 x Locking AC Power Input
Controls
1 x Level Control
1 x Polarity Switch
1 x Front LED Disable Switch
1 x Power Switch
Indicators
1 x Red Peak LED
1 x Red Limit LED
1 x Red Protection LED
1 x Green Power LED
1 x White Front LED
Protection
Power Switch On/Off Mute
DC-Fault
Output Limit
Clip Limit
Overheating
Overcurrent
Over Voltage
Power
PFC Switching Mode Power Supply
Consumption
100W (1/8 Power)
Cooling
Natural Convection
Mounting
1 x Standard 35mm Pole Socket (Top)
2 x Metal Handles (L/R)
Dimensions (WxHxD)
520x638x584mm / 20.4x25.1x22.9"
Weight
42.0kg / 92.5lbs
