Yamaha DXR10 10" 1100W 2-Way Active Loudspeaker, 1.4" Compression Tweeter, 56Hz - 20kHz (-10 dB) Frequency Range

SKU: YMDXR10 MFR: DXR10

Our Price

$599.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $899.00

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Ways To Save

Product Highlights

  • Compact & durable ABS cabinet is Ideal for a variety of live sound & touring applications
  • Provides enhanced bass performance with reduced turbulence
  • Bass-reflex cabinet design
  • Crossover uses a FIR-X linear phase filter to optimize driver performance
  • Biamplified design
  • Allows use of speaker as a main/FOH speaker or as a stage monitor
  • Standard 35mm pole socket
  • 10" PA Speaker
Yamaha DXR10: Picture 1 regular $599.99

About Yamaha DXR10

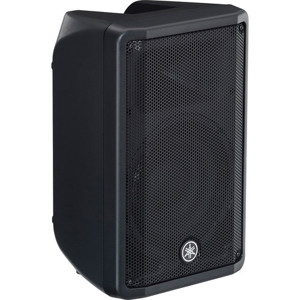

The Yamaha DXR10 10" 1100W 2-Way Active Loudspeaker provides clear audio and high output levels in a compact and durable design, ideal for live sound applications. The cabinet has a rugged ABS construction with a bass-reflex design for enhanced bass performance with reduced turbulence. The 10" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response. The crossover uses a FIR-X linear phase filter to optimize driver performance.

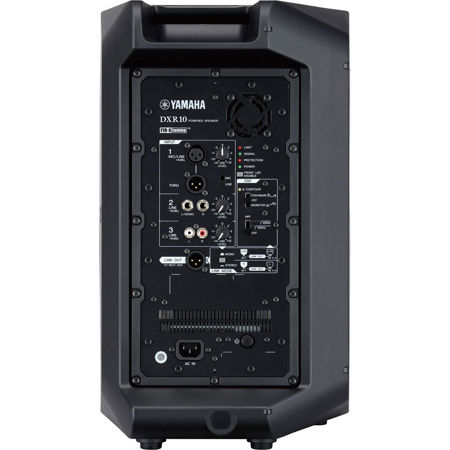

The speaker has a biamplified design that provides a combined peak output power of 1100W for a strong performance with minimal distortion. A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor, while an onboard mixer eliminates the need for an external mixer. The rear panel has XLR, 1/4" and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices.

The speaker can be placed on a floor or stage, but also has useful mounting options. A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting.

Yamaha DXR10 Features

  • The compact and durable ABS cabinet is ideal for a variety of live sound and touring applications
  • The bass-reflex cabinet design provides enhanced bass performance with reduced turbulence
  • The 10" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response
  • The crossover uses a FIR-X linear phase filter to optimize driver performance
  • The biamplified design provides a combined peak output power of 1100W for a strong performance with minimal distortion
  • A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor, while an onboard mixer eliminates the need for an external mixer
  • The rear panel has XLR, 1/4" and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices
  • A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting

Yamaha DXR10 Specifications

Type of speaker
Active, 2-way, biamplified
Frequency Range
56 Hz - 20 kHz (-10 dB)
Coverage
90deg. H x 60deg. V
Woofer
10" (254 mm) cone woofer with 2" voice coil and ferrite magnet
Tweeter
1.4" (36 mm) compression tweeter with 1" throat and ferrite magnet
Crossover
FIR-X tuning (linear phase FIR filter)
Amplifier Power
Dynamic: 1100 W (950 W LF, 150 W HF)
Continuous: 700 W (600 W LF, 100 W HF)
Output Level
131 dB SPL max (1 m, on axis)
Connectors
1 x XLR input
2 x 1/4" phone inputs
2 x RCA inputs
1 x XLR thru jack (parallel with input)
1 x XLR link output
Processor
D-contour: FOH/main, monitor, off
Cabinet
Bass-reflex, ABS with black matte finish
Mounting
3 x Fly points (2 top, 1 rear, fits M8 x 15 mm eyebolts)
1 x 35 mm pole socket with 0deg./7deg. 2-way feature
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption
90 W
Dimensions (WxHxD)
305x502x310mm / 12x19.76x12.20"
Weight
14.6kg (32.2lbs)
Mfr #
DXR10
SKU
YMDXR10
