Yamaha HS5 Powered Studio Monitor, 70W Total Output, 5" Cone Woofer, 1" Dome Tweeter

Yamaha HS5: Picture 1 thumbnail Yamaha HS5: Picture 2 thumbnail Yamaha HS5: Picture 3 thumbnail Yamaha HS5: Picture 4 thumbnail

List Price: $250.00

Free Shipping

See all shipping options

On Backorder - This item is currently back-ordered by the manunufacturer. Although we have no estimated time of arrival of this item, you can order it now and it will ship as soon it arrives. Your card will only be charged once item is shipped. learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95
20% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Ways To Save

More Buying Options

Product Highlights

  • Low Resonance Enclosure Design
  • Noise Reduction Technology
  • Controls and Connectivity
  • 5" Monitor Speaker
Yamaha HS5: Picture 1 regular $199.99

About Yamaha HS5

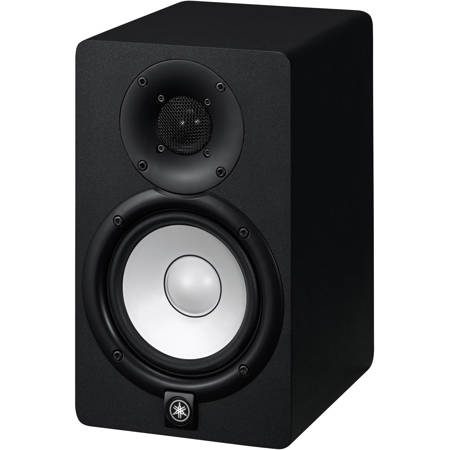

The Yamaha HS5 Powered Studio Monitor is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 70W of total output and features a 5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS5 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.

Yamaha HS5 Features

  • Low Resonance Enclosure Design: HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response
  • Noise Reduction Technology: Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise
  • Controls and Connectivity: HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size

Yamaha HS5 Specifications

System Type
2-Way Bi-Amped Powered Studio Monitor
Frequency Response
54 Hz to 30 kHz
Crossover Frequency
2 kHz
LF: 5" (127 mm) Cone
HF: 1" (25 mm) Dome
Output Power
Total: 70W
LF: 45W
HF: 25W
Input Sensitivity
-10 dBu / 10 kohm
1x Balanced XLR3-31 Type
1x 1/4" (6.35 mm) Balanced TRS
Level Control (+4 dB/Center Click)
EQ: High Trim Switch (+/- 2 dB at HF)
Room Control Switch (0, -2, -4 dB under 500 Hz)
1x Power On, White LED
Power Consumption
45 W
Type: Bass-Reflex
Material: MDF
Dimensions (WxHxD)
6.7x11.2x8.7" / 17.27x28.44x22.09 cm
11.7 lbs / 5.30 kg
