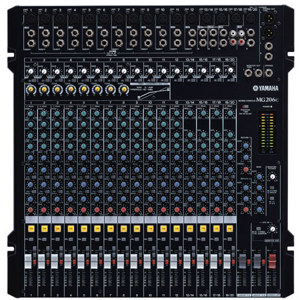

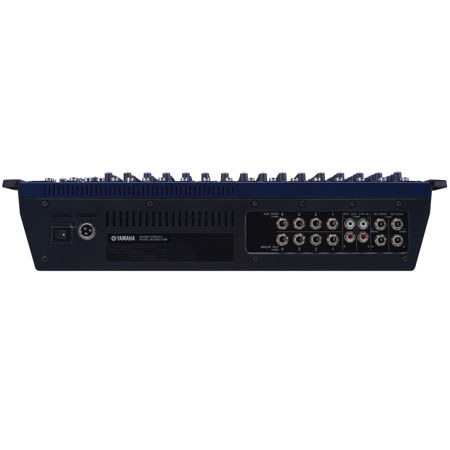

Yamaha MG206C-USB 24-Channel 6-Bus Rack-Mountable Mixer
Yamaha

Yamaha MG206C-USB 24-Channel 6-Bus Rack-Mountable Mixer, USB Connection, 20 - 20kHz Frequency Response, +48V Phantom Power

SKU: YMMG206CUSB MFR: MG206CUSB
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$679.99
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Yamaha MG206C-USB 24-Channel 6-Bus Rack-Mountable Mixer is designed for both project studio and live sound applications. The mixer features 24 total input channels with 1/4" TRS phone inputs on all channels and 16 XLR microphone inputs. Channels 1 through 16 are mono while 17/18, 19/20, 21/22 and 23/24 feature stereo paired 1/4" TRS phone inputs for connecting stereo devices such as keyboards, recorders etc. In addition, a built-in compressor is available on all mono channels for vocals, instruments, etc.

A USB port is provided and integrates with a PC for direct, digital recording and playback. A copy of Cubase AI4 recording software is also included. The MG206C-USB provides plenty of routing possibilities with 1/4" TRS inserts on all mono channels. Inserts send signal to external signal processors and effects and allow the signal to be returned to the original channel. The stereo outputs can be grouped with the provided stereo group bus for a total of 4 output buses. Three-band EQ sections provide high pass filter and sweepable mid-range. All microphone inputs are capable of providing +48V phantom power. The MG206C-USB is a suitable solution for project recording studios, video editing facilities and live sound reinforcement.

Key Features

  • Easy live recording with bundled Cubase AI4: Cubase AI4 offers direct digital connectivity to the stereo buses of MG "USB" models for audio recording and editing
  • Versatile Connectivity and Pro-class Connectors: Top-mounted input and output connectors make setting up and re-patching your system quick and easy. MG206C-USB features high-quality Neutrik balanced XLR connectors on mono microphone/line channels and XLR-equipped stereo channels
  • Built-in Channel Compressors: This advanced feature can be a tremendous advantage in achieving great vocal sound, as well as to refine the sound of bass, guitar and other sources
  • High-performance Microphone Preamplifiers with Switchable Phantom Power: The microphone preamps built into the MG mixers inherit technology from Yamaha's top-line professional consoles and have been painstakingly designed to deliver superior sonic performance with any dynamic or condenser microphone
  • 3-band Channel EQ and High-pass Filters: Building a truly useful, musical-sounding channel equalizer is no easy task, but Yamaha has decades of experience in building pro consoles to draw on
  • Aux Sends: The MG206C-USB has four AUX sends for convenient to processing and monitor systems. Aux 1 is pre-fader, while AUX 2 and 3 are switchable pre or post fader and aux 4 is post fader to provide maximum flexibility
  • Six Buses (Stereo and Group): The MG206C-USB features two stereo group buses and outputs that can be used for convenient channel grouping. Assign switches for the stereo and group buses are located next to each channel fader
  • Smooth 60-millimeter Faders & Illuminated Channel ON Switches: Channel and master level control on the MG206C-USB is accomplished via reliable, high performance 60-millimeter linear faders that provide smooth, noise-free operation
  • Bright Meters for Visual Level Monitoring: Accurate visual level monitoring can help you achieve maximum signal-to-noise ratio without distortion. The MG mixer's bright, easy-to-read multi-segment LED meters make it easy to control system levels for optimum overall performance
  • Easy Operation: All switches, controls and displays have been designed and laid out for intuitive access and smooth, reliable operation with positive tactile and visual feedback

Technical Specs

Total No of Inputs 24 - Total Inputs
Mic/Line Inputs 16 - Mic Inputs: Balanced 3-pin XLR
24 - Line Inputs: Balanced 1/4" TRS Phone
Stereo Line Inputs 4 - Stereo Line Inputs: (L/R) Balanced 1/4" TRS Phone,
In-Line Inputs/Returns No
AUX Sends 2 - L/R Stereo 1/4" TRS Phone connections
AUX Returns Aux are returnable via stereo input channels
Inserts 1/4" TRS Phone all mono channels
BUS (Group) Outputs Stereo Group Bus: (2) 1/4" TRS Phone
4 Bus output when used in conjunction with main stereo output
Main Outputs Stereo Outputs: L/R 1/4" TRS Phone & L/R XLR 3-pin balanced
ALT I/O REC Outputs: L/R RCA Outputs
Monitor Outputs C/R Outputs: L/R 1/4" TRS Phone
EQ Section CH & ST High Pass Filter:
80Hz 12dB/octave
Mono Channel EQ -15dB (max.):
High: 10kHz (shelving)
Mid: 2.5kHz (peaking)
Low: 100Hz (shelving)
Stereo Channel EQ -15dB (max.):
High: 10kHz (shelving)
Mid: 2.5kHz (peaking)
Low: 100Hz (shelving)
Solo/Mute Mute & PFL Solo - all input channels
Channel Level Control Faders
Trim/Gain Control Gain Range:
CH IN MIC: -60 to -16, 3 kohms actual
CH IN LINE: -34 to 10, 10 kohms actual
ST CH MIC: -60 to -16, 3 kohms actual
ST CH LINE: -34 to 10, 10 kohms actual
Phantom Power +48V
Metering Stereo Peak LED
Frequency Response 20 - 20kHz at +4dB 600 ohms (ST Out)
Signal-to-Noise Ratio -128dB
20Hz - 20kHz, RS=150 ohms, Input Gain=Maximum, Input Pad=OFF, Input sensitivity -60dB
Total Harmonic Distortion (THD) Less than 0.1% (THD+N)
Power Supply 27W 120V/60Hz
Dimensions (WxHxD) 478x105x496 mm / 18.81x4.13x19.52"
Weight 6.0 kg / 13.22 lbs
