Yamaha

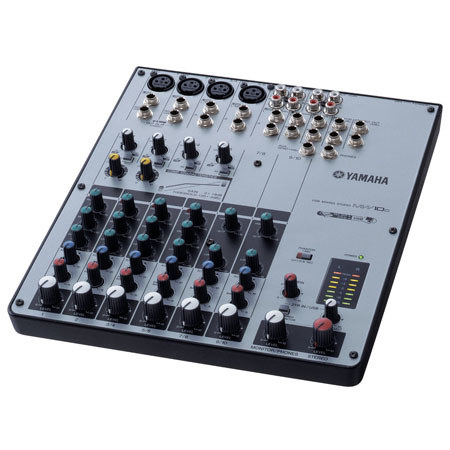

Yamaha MW10C USB Studio Mixer

SKU: YMMW10C MFR: MW10C
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$168.90
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Yamaha MW10C

The Yamaha MW10C USB Studio Mixer is designed to provide complete audio mixing flexibility for laptop and desktop software recording workstations. The MW10C features a total of 10 input channels. The channels are comprised of 2 mono inputs and 4 stereo input channels for keyboards, player devices and other stereo signal sources. A USB connection allows direct integration with any computer and the MW10C includes software from Steinberg, IK Multimedia and Sonic Reality providing a complete workstation bundled in one package.

With features that include true plug-and-play USB audio interfacing, 1-knob analog compression, high performance EQs and low-noise mic-pres, the Yamaha MW10C is the perfect portable mixing solution for traveling musicians, producers, DJs and project studio recording.

Yamaha MW10C Includes

  • Yamaha MW10C USB Studio Mixer
  • Power Adaptor
  • USB Cable
  • DVD-ROM (CUBASE AI4)
  • Owner's Manual Set
  • Yamaha Warranty

Yamaha MW10C Features

  • Single USB Connection, Instant Studio: Combined with the powerful Cubase AI4 audio/MIDI sequencing software, the new MW series provides a comprehensive tabletop studio setup for the solo recording musician and for the travelling producer/arranger
  • Flexible 8-Channel & 10-Channel Configurations: The MW8CX gives you a total of eight inputs, including four ultra-low-noise mic preamps. The MW10C gives you an additional stereo channel for a total of ten inputs
  • Flexible 12-Channel Configuration: The MW12C and MW12CX both give you a total of twelve inputs, including four mono microphone/line inputs and four stereo line inputs
  • Assignable REC Out: The MW12C and MW12CX has assignable busses (REC OUT). This feature gives you addes flexibility in routing the signals for recording and monitoring. Turning on the ON switch for any channel immediately routes that channel to the USB terminal and enables it for recording
  • Easy-to-use 1-Knob Compression: The taming of wildly varying levels in vocals, bass and guitar-is one of the most important effects used in recording and mixing
  • Monitor Mix: This convenient feature gives you simple control over the balance between the signals being recorded and the playback signals being monitored
  • Easy-Access Panel & High-Quality Parts: Top-mounted input and output connectors make setting up and re-patching your system quick and easy. Both models feature high-quality Neutrik balanced XLR connectors for the microphone inputs
  • Built-In SPX Effects: The MW8CX and MW12CX incorporates a versatile digital multi-effect unit that provides a variety of reverb, delay, modulation and distortion programs you can use to enhance your sound, or completely transform it-without the need for an external device
  • Channel On Switches: Dedicated On switches for each channel let you enable or disable (mute) individual input channels as desired, while the lamps on the switches give you instant visual indication about which channels are on

Yamaha MW10C Specifications

Controllers Dial: No
Sampling Frequency Rate 44.1, 48 kHz, Depend on the application of PC
Frequency Response ST OUT, REC OUT, AUX (EFFECT) SEND, MONITOR OUT = -3.0, 0, 1.0 dB, GAIN: min (CH 1-2, CH 3/4-5/6), 20Hz-20kHz, refer to the nominal output level at 1kHz
Total Harmonic Distortion ST OUT = Less Than 0.1 %, +14dBu, 20Hz-20kHz, Input Gain Control at minimum
Cross Talk -70 dB, STEREO L/R, CH 1-2, PAN panned Hard left or right
Headphones Phones (Stereo phone type)
Microphone CH Input Mic 1,2 (XLR-3-31 type), ST CH Mic Input 3-4,5-6 (XLR-3-31 type)
Line Out REC OUT (RCA pin type), STEREO OUT L,R (TRS phone type)
Optical Out No
USB TO Host Yes
Power Consumption 21W
Phantom Power DC+48 V
System Requirements 1 Windows
CPU: Windows Vista = 1 GHz or better Intel Core / Pentium / Celeron processor, Windows XP = 750 MHz or better Intel Core / Pentium / Celeron processor
Support OS: Windows Vista / Windows XP Professional / XP Home Edition
Memory: Windows Vista = 1 GHz or better Intel Core / Pentium / Celeron processor, Windows XP = More than 128 MB
System Requirements 2 Macintosh
PC: Windows-based computer with built-in USB interface
CPU: Macintosh G3 processor 300 MHz or better
Support OS: Mac OS X 10.3.3 or higher
Memory: More than 128 MB
Connectivity AUX In: CH Insert In (TRS 1/4" jack) AUX Return L,R (1/4"jack )
AUX Out: AUX Send (TRS phone type)
Dimensions (WxHxD) 256.6x62.2x302.5mm / 10.10x2.44x11.91"
Weight 1.6kg / 3.53lbs
