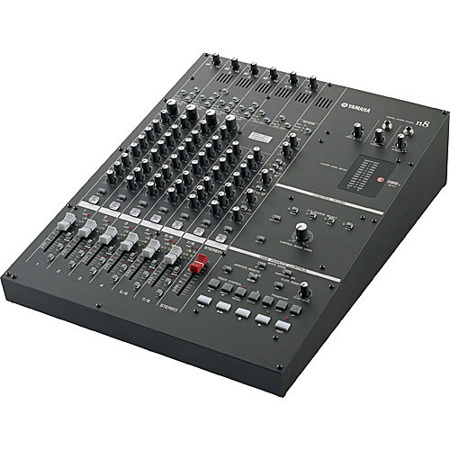

Yamaha N8 8-Channel Digital Mixing Studio, 20 Hz-20 kHz Frequency Response, -128 dB Signal-to-Noise Ratio

Yamaha
SKU: YMN8 MFR: N8
Yamaha N8: Picture 1 thumbnail Yamaha N8: Picture 2 thumbnail Yamaha N8: Picture 3 thumbnail

List Price: $1,299.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
38% Off

Our Price

$799.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Yamaha N8

The Yamaha N8 8-Channel Digital Mixing Studio delivers the flexibility, processing and sound quality of a digital mixer, with the familiarity and comfort of an analog mixer's control.

The N8 is an eight-channel recording mixer with four high quality microphone preamps, four mono line inputs and two stereo-coupled line inputs. Two FireWire ports integrate directly with a PC or Mac based computer and Cubase AI4 is also included to provide a complete desktop recording and mixing workstation.

Internal digital processing supports 44.1, 48, 88.2 and 96kHz sample rates and features such as Sweet Spot Morphing compression, High-resolution Rev-X Reverb and a 3-band musical EQ deliver all the internal processing necessary for intuitive, professional standard mixing. Additional features include MIDI input and output ports for interfacing controller keyboards and other MIDI devices and a foot-switch for guitarists and other musicians.

The Yamaha N8 is an ideal project studio mixer for anyone who desires the flexibility of digital audio processing, without sacrificing an analog mixer's interface, routing and feel.

Yamaha N8 Features

  • Integral Digital Processing: Built in A/D and D/A converters digitize audio and allow for flexible processing and enhanced sound quality
  • Sweet Spot Compression: Sweet Spot compression is provided on every input channel and provides the perfect amount of compression without complicated settings
  • High-Resolution Rev-X Reverb: The High-Resolution Rev-X Reverb processor provides professional quality digital reverb and spatial effects
  • Cubase AI2 Software: The included Cubase AI2 software provides a complete, desktop recording workstation
  • FireWire Connections: Two FireWire connections are provided for direct integration with Mac and Windows based software. The FireWire ports support twelve audio input and output channels
  • Software Control Surface: Transport controls are featured for full control over Cubase AI2
  • MIDI Input and Output: MIDI input and output ports provide an interface for keyboard controllers and MIDI devices

Yamaha N8 Specifications

Total No of Inputs
8
Mic/Line Inputs
Microphone - 3-pin XLR Microphone (chs. 1 - 4) x4
Line - 1/4" Phone Mono (chs. 1 - 4) x4
Line - 1/4" Phone L/R Stereo (chs. 5 - 8) x2
Line - Unbalanced RCA L/R Phono (chs. 5 - 8) x2
2TR Input - Unbalanced RCA L/R Phono
FireWire x2
Main/Monitor Out
C-R Out - 1/4" Phone L/R Stereo
ST Out - 1/4" Phone L/R Stereo
FireWire x2
AUX Sends
No
AUX Returns
No
Inserts
1/4" Phone Mono (chs. 1 - 4) x4
Digital I/O Options
FireWire Digital I/O (Standard - Not Optional) x2
MIDI In and Out
2 Trk Master I/O
FireWire Digital
Control Room (C-R)
Stereo Outputs
Stereo Digital I/O
FireWire Digital
Word Clock I/O
No
RS/To Host Port
No
MIDI Ports
Midi In and Out
EQ Section
3-Band Effective musical EQ
Trim/Gain Range
Input A -60 dBu to +10 dBu; +24 dBu
Input B -60 dBu to +10 dBu; +24 dBu
Solo/Mute
Solo and Mute on all channels
Channel Level Control
60mm x7 (Non-motorized)
Phantom Power
+48V, Individually Switched
Metering
12 Segment Stereo Peak LED Meters
Internal Signal Processing
Sweet Spot Morphing Compressor
High-Resolution Rev-X Reverb
Sampling Frequency
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Memory
No
Frequency Response
fs = 48kHz 20 Hz-20 kHz, +1, -3 dB @ +4 dB, into 600 ohms
fs = 96kHz 20 Hz-40 kHz, +1, -3 dB @ +4 dB, into 600 ohms
Total Harmonic Distortion (THD)
0.003 % or less (1 kHz @ +18 dB, into 600 ohms)
Signal-to-Noise Ratio
-128 dB, Equivalent input noise
Power
33 W (PA-20)
Dimensions (WxHxD)
14.48 x5.74 x20.39" (368 x146 x518mm)
Weight
24.25 lb (11 kg)
