Zmodo 8-Channel Security DVR with 8 Cameras Surveillance System, 500GB Hard Drive

SKU: ZMDK0855 MFR: PKD-DK0855-500GB
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Zmodo 8-Channel Security DVR

The PKD-DK0855-500GB kit includes an 8 CH H.264 standalone DVR with 500GB HD and eight outdoor security cameras, providing everything you need to have your surveillance system up and running in your home or business quickly and easily.

The DVR-H8118UV is an 8 channel, fully integrated, real time, and hardware based standalone digital video recorder. This standalone DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation. With network access, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.

The cameras included in the kit are 1/4" color CMOS IR night vision outdoor cameras. All cables and power supplies are included.

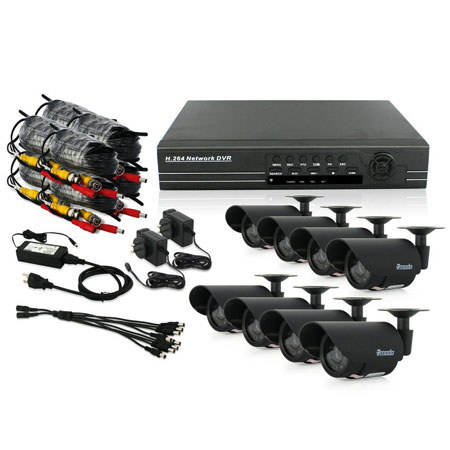

Zmodo 8-Channel Security DVR Includes

  • DVR-H8118UV DVR with 500GB HD
  • 8x CM-C11306BK Outdoor Security Camera with Bracket
  • 8x 60' Video + Power All-in-One Cable for Security Camera
  • 2x 12V 4-Port Power Supply for Security Camera
  • PA-103 12V Power Supply for Surveillance DVR
  • IR Remote Control & Mouse
  • User's Manual
  • Zmodo 1 Year Warranty

Zmodo 8-Channel Security DVR Features

  • H.264 hardware compression for quality video and effecient data management
  • Versatile display options with BNC and VGA connectivity
  • DVR compatible with NTSC and PAL video standards (camera NTSC only)
  • Detailed video capture with 240 fps display and recording speeds
  • Remote viewing via Internet or compatible smartphone
  • Alarm input and output for enhanced security
  • PTZ control via RS485 interface
  • Camera: quality video with 1/4" color sensor and 420 TV lines of resolution
  • 6mm lens suitable for general purpose viewing
  • Weatherproof camera suitable for indoor or outdoor surveillance
  • 30' IR illumination for 24/7 uninterrupted security
  • Integrated bracket for wall and ceiling installation

Zmodo 8-Channel Security DVR Specifications

DVR Video Compression H.264
Video System NTSC / PAL
Operation System Linux Based
Video Input / Output BNC 8-Channel Input / 1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 1-Channel Input / 1-Channel Output
Display Frame Rate NTSC: 240 fps @ D1 / PAL: 200 fps @ D1
Display Resolution NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF / PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF
Record Resolution Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
Record Mode Continuous / Time Schedule / Motion Detection
Recording Pack Time 15/30/45/60mins Selectable
Network RJ45, 10M/100M
Network Function IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function
Net Protocol TCP/IP, PPPoE, UPnP DHCP and DDNS
Remote Access Internet Explorer or Remote Client Software
PTZ Control RS-485
HDD Interface SATA, Support up to 2TB
USB Flash drive/USB HDD/USB DVD-RW/Network download
Remote Control IR Remote Control
Power Supply DC12V, 3A
Dimension WxDxH 13.3 x 11.2 x 3.6" / 334 x 284 x 91mm
Weight 4.3 lbs / 2kg
Camera Image Sensor 1/4" Color CMOS
TV System NTSC
Effective Pixels NTSC: 656 (H) x 492 (V)
Horizontal Resolution 420 TV-Lines
Lens 6mm
Number of IR LEDs 11 LEDs
Infrared Illumination (Night Vision) up to 30ft
Minimum Illumination 0.0 Lux
S/N Ratio 45.6dB
Video Output 1.0Vp-p, 75ohms BNC
Weatherproof Yes
Operating Temperature -25°F~122°F / -32°C ~50°C
Power 12V DC
Material Metal Shell
Dimension WxDxH 2.8 x 1.3 x 1.3" / 72 x 33 x 33mm
Weight 0.5 lbs / 227g
