Zmodo Surveillance PKD-DK0865-NHD 8 Channel CCTV DVR Outdoor IR Camera System, 1/4" Color CMOS Image Sensor, No HDD


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Zmodo PKD-DK0865-NHD

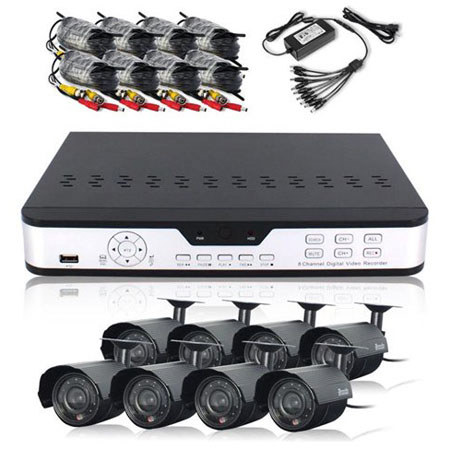

The Zmodo Surveillance PKD-DK0865-NHD 8 Channel CCTV DVR Outdoor IR Camera System includes an 8 CH H.264 standalone DVR and eight night vision outdoor security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.

The DVR-H9108V is an 8-channel, fully integrated, real time and hardware based standalone digital video recorder. With network access, motion detection, VGA video output and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone. The cameras included in the kit are 1/4" color CMOS IR night vision outdoor cameras. All cables and power supplies are included.

Zmodo PKD-DK0865-NHD Features

  • 8 CH H.264 Surveillance DVR
  • H.264 Hardware Compression
  • Two Type Video Out: TV Monitor BNC Output and PC Monitor VGA Output
  • Remote Access: Internet Explorer or Netviewer Software
  • PTZ via RS485 Port
  • Support Remote View via Smart Phone & 3G Mobile with each of those systems below: iPhone, Google Android, Blackberry OS V4.6, Windows Mobile Pro 5.0 & 6.1, Symbian S60 3rd & S60 5th
  • 1/4" Color CMOS Image Sensor
  • 420 TV Lines, Horizontal
  • Weatherproof
  • IR Irradiation Distance: up to 30
  • Mount: Ceiling or Wall
  • Video Connector: BNC

Zmodo PKD-DK0865-NHD Specifications

DVR: Video Compression
DVR: Video System
DVR: Operation System
Linux Based
DVR: Video Input / Output
BNC 8-Channel Input / 2-Channel Output
DVR: Other Video Output
DVR: Audio Input / Output
RCA 1-Channel Input / 1-Channel Output
DVR: Display Frame Rate
NTSC: 240 fps @ D1 / PAL: 200 fps @ D1
DVR: Display Resolution
NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576)
DVR: Recording Frame Rate
NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF
DVR: Record Resolution
Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
DVR: Record Model
Continuous / Time Schedule / Motion Detection
DVR: Recording Pack Time
15/30/45/60mins Selectable
DVR: Simplex/Duplex/Triplex/Pentaplex
DVR: Network Function
Support Live View with IE & Mobile Phone
DVR: Network
RJ45, 10M/100M
DVR: Net Protocol
DVR: Remote Access
LAN or Internet Browsing
DVR: PTZ Control
DVR: HDD Interface
SATA, Support up to 2TB
USB Backup/USB 2.0
DVR: Remote Control
IR Remote Control
Camera: Image Sensor
1/4" Color CMOS
Camera: TV System
Camera: Effective Pixels
NTSC: 656 (H) x 492 (V)
Camera: Horizontal Resolution
420 TV-Lines
Camera: Lens
Camera: Number of IR LEDs
11 LEDs
Camera: Infrared Illumination
Up to 30
Camera: Minimum Illumination
0.0 Lux
Camera: Weatherproof
Camera: S/N Ratio
> 45.6dB
Camera: Video Output
1.0Vp-p, 75ohms
Camera: Operating Temperature
Camera: Power
12V DC
Metal Shell
Dimensions (W x D x H)
DVR: 300mm x 209mm x 47mm(11.81" x 8.22" x 1.85")
Camera: 7.2cm x 3.34cm x 3.34cm(2.83" x 1.31" x 1.31")
