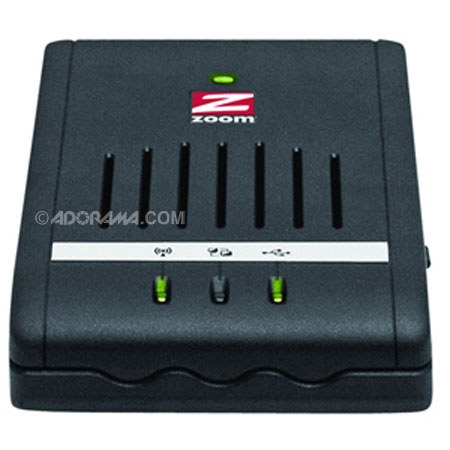

Zoom Telephonics 4506 3G Wireless-N Travel Router for 3G USB Modems

SKU: ZO45060000F MFR: 4506-00-00F
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

About this item

Now you and your associates with WiFi-enabled devices can share a mobile broadband connection to the Internet. Computers, mobile phones, gaming devices, music players, cameras and more can access the Internet wherever you can obtain a mobile broadband connection with your USB modem. Just plug in the modem and then all the WiFi devices you choose have fast, easy Internet access. Use it for just yourself, or share it with family members, friends, or business associates.

The Zoom 3G wireless-N travel router works anywhere your mobile broadband modem works - in a car, at home or wherever you work: outdoors, at the airport, in a hotel, at a trade show, or almost anywhere you can imagine. You don't even need a power outlet! The Travel Router works for up to 7 hours on its built-in rechargeable lithium ion batteries. It also works and recharges when its small power cube is plugged into a power outlet.

The Travel Router is pocket-sized and light, so it's easy to bring with you. And its wireless-N networking capability is fast, with extended range for maximum mobility. The Travel Router can expand the range and enhance the data rate of your mobile broadband connections. Place the Travel Router and 3G modem where the 3G cellular signal strength is high. Then the Travel Router will complete the local connection to your devices with a robust wireless-N signal. The Travel Router is widely compatible with USB mobile broadband modems in the market.

What's Included With This Item

  • Zoom Telephonics 4506 3G Wireless-N Travel Router
  • Ethernet Cable
  • Setup CD
  • Power Adapter
  • Zoom Telephonics 1 Year Limited Warranty

Key Features

  • Allows one or more WiFi-enabled devices to connect to the Internet at the same time: computer, iTouch, mobile phone, game station..
  • A 3G USB modem simply plugs into the router
  • Router is powered by its rechargeable batteries or its power cube
  • Extensive compatibility with 3G USB modems
  • Includes Range Extender feature

Technical Specs

Wireless LAN Standards IEEE 802.11n draft specification, IEEE 802.11b/g wireless
Interfaces 1 x RJ45, 10/100 Mbps selectable for interface with either WAN or LAN
1 x USB 2.0 Host
WPS button, power switch, reset button
Wireless LAN Security 64/128 bit WEP (Wired Equivalent Privacy) with Pass Phrase; WPA (WiFi Protected Access) and WPA2 with Pass Phrase; SSID stealth; WPS for easy security setup
Internet Security Stateful Packet Inspection (SPI) Firewall
Network Address Translation (NAT)
Denial of Service (DoS) attack detection
Virtual Private Networking (VPN) pass through
MAC, Packet and Domain name filtering
URL Blocking
Management Universal Plug and Play (UPnP)
Browser based management
Wizard-assisted setup
Simple Network Management Protocol (SNMP support)
Advanced Router Functions Quality of Service (QoS) support
URL Blocking/Filtering (parental control)
Scheduling rules (parental control)
Virtual Server, Port triggering and DMZ host
Dynamic DNS
Configuration Backup/Restore
Supported WAN Protocols 3G; Static IP Address; Dynamic IP Address; PPP over Ethernet; PPTP WAN type; L2TP WAN type
Antenna One internal antenna
Battery Lithium-ion, 3.7 Volt 1700 mAh
Power Adapter Output 5 Volts, 2.0 Amps
Transmission rates Maximum physical rate of up to 150 Mbps in 802.11n mode
6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode
1/2/5.5/11 Mbps in 802.11b mode
Range coverage Indoors: up to 100 meters (330 feet), depending upon the environment
Outdoors: up to 300 meters (990 feet), depending upon the environment
LED status indicators Four indicators, reporting:
Presence, source and status of power (battery power and level of power, battery charging, operating from power adapter)
LAN connection using Ethernet, data being transferred
3G WAN connection established, data being transferred
Wireless LAN connection available, data being transferred
Wireless LAN Channels Frequency Range United States (FCC) channel 1 through 11
Europe (ETSI) Channel 1 through 13
Operating Temperature 0 to 40 deg.C, 1% to 90% (Non-condensing Humidity)
Storage Temperature -10 to 70 deg.C, 0% to 90% (Non-condensing Humidity)
Certifications FCC, CE, RoHS compliant
Dimensions 3.0 x 4.2 x 0 .9 inches
7.6 x 10.6 x 2.2cm
Weight 4.9oz / 0.13kg, including battery
