16x9

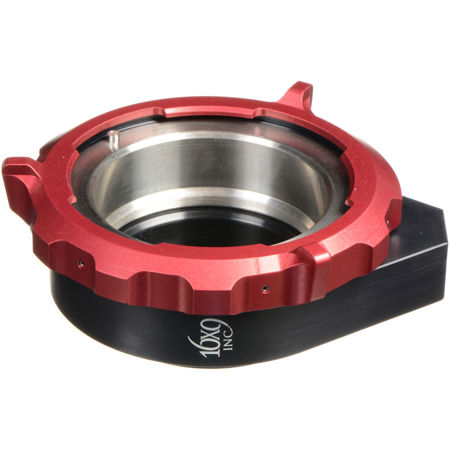

16x9 Cine Lens PL to Micro 4/3 Mount, Compatible with Panasonic AF100

SKU: ZOCLMPLMF MFR: 169-CLM-PLMFT
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$595.00 List Price

Our Price

$539.95
Free Shipping
Qty:

Add to Wishlist In Stock

About this item

The 16x9 Cine Lens Mount PL to Micro 4/3 Mount allows you to use a cinema lens on Micro 4/3" cameras such as the Panasonic AF100 and mirrorless DSLR cameras It comes with 4 shims (0.2mm, 0.4mm, 1mm, 2mm) that allow you to adjust the back-focus of the camera. The included 15mm Mini Rod Support Bracket enables you to attach the mount to 15mm support rods.

You can remove or add shims to adjust the distance between the rear surface of a PL mount and the film plane or sensor. Using a back-focus chart (not included), you can adjust the distance to obtain sharp images. The shims are held together with 6 screws. The Cine Lens Mount PL mount has an aluminum and stainless steel construction and features front and rear bayonet locking mechanisms.

What's Included With This Item

  • 16x9 Cine Lens Mount PL to Micro 4/3 Mount
  • 4 Shims (0.2mm / 0.4mm / 1mm / 2mm)
  • 16x9 1 Year Limited Warranty

Key Features

  • Allows you to use a cinema lens on Micro 4/3" cameras such as the Panasonic AF100 and mirrorless DSLR cameras
  • 4 Shims (0.2mm, 0.4mm, 1mm, 2mm) - allow you to adjust the back-focus of the camera
  • You can remove or add shims to adjust the distance between the rear surface of a PL mount and the film plane or sensor
  • You can adjust the distance to obtain sharp images (using a back-focus chart)
  • Shims are held together with 6 screws
  • Aluminum and stainless steel construction
  • Features front and rear bayonet locking mechanisms

Technical Specs

Female Mount PL-Mount
Male Mount Micro Four Thirds Mount
Compatibility Panasonic AF100
Weight 12.83 oz (364 g)
