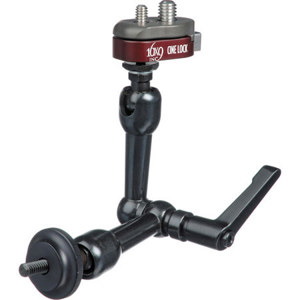

Noga DG1108CA Hold-it Cine Arm Kit with Cine Lock Adapter
What's Included With This Item:
- Noga DG1108CA Hold-it Cine Arm
- Cine Lock Adapter
- 16x9 Warranty
Ways to Save
The 16x9 DG14CA-CL1 is a Noga DG1108CA Hold-it Cine Arm with Cine Lock Adapter. The Hold-it 1/4"-20 Cine Arm is an upgraded version of the Noga Hold-it Articulating Arm. The heart of the device is its single central locking knob that simultaneously locks all 3 joints. It's new, improved central mechanism-a kip lever-is designed to more quickly and easily lock or release the arm's 3 articulated joints. What's more, the new lever provides even greater holding strength. Additionally, the 16x9 Inc.
Cine Arm has been redesigned with equal length on both sides of the arm for increased strength and holding resistance. Noga's rugged, lightweight 3-joint mounting arms have become an essential accessory for the professional cinematographer. Compatible with a wide range of cameras, they attach easily via a standard 3/8" and 1/4"-20 screws and are simple and ease to use. Supporting a monitor or camera light, the arm can be moved to the left or right of the lens, raised or lowered and even tilted up or down to provide the clearest view or to get just the right angle for the job. Add the 16x9 Inc. Cine Lock to enable fast and easy non-thread mounting and removal of the 16x9 Inc.
Cine Arm and its cargo through an ingenious dove tail design. The 16x9 Inc. Cine Lock is made up of two parts, a male and female wedge/dove tail plate. The male is fitted onto the top and bottom of the 16x9 Inc. Cine Arm. The female piece is attached both to the surface where the arm will be anchored and onto whatever object the arm will hold. Once all pieces of the device are in place, the arm can easily be mounted onto a camera handle or tripod, for example - and a monitor or light can easily be mounted onto the arm itself. By sliding the dove-tail to the wedge plate, the unit is locked into place.
|Arm Top||1/4" - 20 screw plus nut|
|Arm Bottom||1/4" - 20 screw|
|Extended Length||9.125" (23.1 cm)|
|Maximum Load Capacity||10 lbs (4.5 kg)|
|Weight||11 oz. (311 g)|
