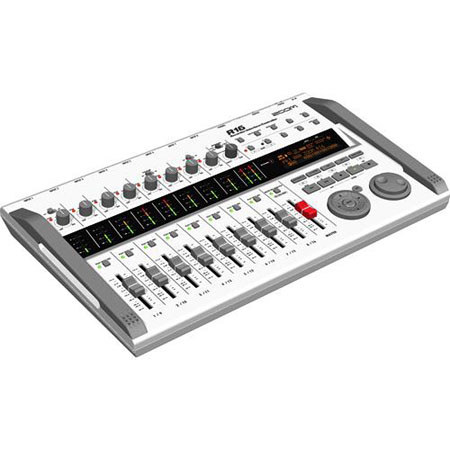

Zoom R16 - Digital Multi-Track Recorder & Mixer, Computer Interface & Controller

SKU: ZOR16

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-10-25T10:26:16

Rated 4 out of 5

workable, even for a non-techie

I like my R16. It is quite compact and I think offers everything you need to make good recordings. I am still learning how to use it. I am not very technically talented but for the most part it is pretty straight forward and easy to use.

CHARLES A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Zoom R16 Specifications

  • Inputs

    8 x XLR and 1/4" TRS Combo Inputs (with Hi-Z input for guitar & bass)

  • Outputs

    2 x 1/4" TRS Master Outputs
    1 x 1/4" Headphone Output

  • Digital I/O Options

    1 x USB 2.0

  • Memory Card

    1 x SD Card Slot
    Compatible with up to 32GB SD Cards for over 100 hours of recording time

  • Sampling Frequency

    44.1 kHz 16/24-bit WAV when recording to SD Card
    96 kHz 24-bit when recording into a computer

  • Tracks

    16 Tracks
    Records up to 8 tracks simultaneously when recording to SD Card

  • Phantom Power

    Yes - 2 channels feature phantom power

  • Metering

    8 x 4-segment track meters
    1 x Stereo 4-segment master output meter

  • Effects

    Over 100 built-in effects
    Can be used in stand-alone mode and when recording into a computer

  • Control Protocol

    Mackie control emulation

  • Power

    Operates on AC power or 6 AA batteries
    When used as a computer interface/control surface it operates on bus power from USB

  • Warranty

    Zoom 1 year warranty

About Zoom R16

The Zoom R16 unites many different audio tools into a single powerful unit; it's a stand-alone multi-track recorder and a USB 2.0 computer audio interface/control surface, as well as a battery powered field recorder & mixer. Whether you're recording musicians, working on an indie film, or taking notes in biology class, you'll always have a use for the Zoom R16.

Using the R16 as a stand-alone recorder could mean many different things to different people. If you're a musician, this means that you can record a full live band and overdub up to 16 tracks, without ever touching a computer. If you're a film maker, you can record all of your lavalier and shotgun microphones in the field and mix them to camera as well. If you're a photographer, you can record ambient sounds for use in a slide show presentation and use the R16 as the playback device at the installation.

Using the R16 as a USB 2.0 audio interface to record into a computer also opens up different possibilities. Musicians can use it to track and mix with their favorite music production program, or use the included Cubase 4 LE software. Film makers and photographers can record voice overs and ADR (additional dialog recording) directly into their favorite non-linear editing programs like Final Cut Pro.

The control surface capabilities of the R16 will also benefit Final Cut Pro users (and other NLE programs). Its dedicated transport controls and jog/shuttle can be used to control the software, allowing the user to be less dependent on their mouse and keyboard. This is a huge benefit for musicians as well. Control surfaces help people focus on their creative work, rather than make them feel like they're checking their email.

With all of the potential uses and creative possibilities the R16 provides, it truly stands in a class of its own. When you factor in its budget-friendly price-tag, it really becomes an incredible option for any aspiring creative person.

Zoom R16 Features

  • Digital recorder with 16-track playback and 8-track simultaneous recording utilizing Secure Digital (SD) memory
  • 16/24-bit/44.1kHz linear PCM recording in WAV format
  • Built-in stereo condenser microphones
  • Includes 1GB SD card and supports cards up to 32GB SDHC
  • Allows simultaneous recording on up to 8 tracks
  • Battery operation for remote recording
  • USB power for audio interface and control surface operation
  • 8 mic inputs / 2 outputs (8 x 2)
  • 8 combination XLR-1/4-inch inputs
  • High-definition 24-bit/96kHz recording capability using digital audio software
  • Built-in effects can be used as outboard effects as well
  • Hi-Z input for direct connection of guitar or bass
  • Includes preamp with phantom power on two channels
  • Mackie control emulation via USB for popular DAW software including Cubase, Logic, Digital Performer and more
  • Over 100 built-in studio effects coming from advanced DSP
  • Amazing guitar amp and effects models
  • Professional quality mastering effects including multi-band compressor, normalizer and more
  • Operates as USB storage device for quick data transfer
  • Connect two R16s via USB for synchronized operation and 16 tracks of simultaneous recording
  • Undo/Redo functions
  • Comes with Steinberg Cubase LE 4
  • Supports Windows XP/Vista, Mac operating systems

Product Documents

User Manual

Key Features

  • Built-in stereo condenser microphones
  • Allows simultaneous recording on up to 8 tracks
  • Battery operation for remote recording
  • 8 mic inputs / 2 outputs (8 x 2)
  • 8 combination XLR-1/4-inch inputs
  • Hi-Z input for direct connection of guitar or bass

What's in the box:

  • Zoom R16-Digital Multi-Track Recorder
  • 1GB SD Card
  • Steinberg Cubase LE Recording Software
  • Zoom 1 Year Warranty
