Zoom R24 Recorder / Interface / Controller / Sampler, Simultaneous Recording of 8-Track and Playback of 24-Tracks

SKU: ZOR24 MFR: ZR24
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$624.99 List Price

Our Price

$499.99 $20 per week
Free Overnight Shipping
Qty:
Add to Wishlist In Stock

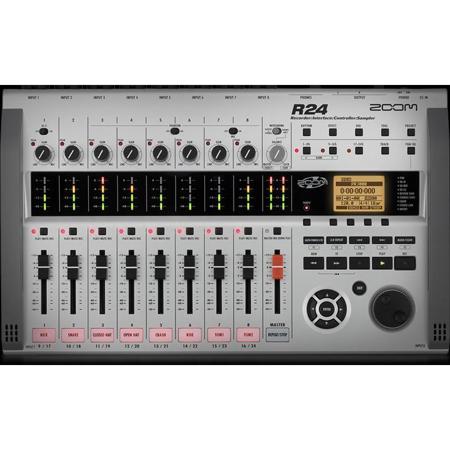

About the Zoom R24

The R24 Digital Recorder, Sampler, USB Interface and DAW Controller - Combines a 24-track recorder, audio interface control surface capability, drum machine and sampler functions. The Zoom R24 is great for live and studio applications. Simultaneous 8-track capability and Playback up to 24 tracks using its 16/24 bit linear WAV format and 44.1 or 48 kHz sampling rate.

The R24 functions as an audio interface enabling direct input of sound to a computer. Support for high quality 24-bit/96kHz encoding ensures great sound. Eight input channels and two output channels can be used simultaneously. If you use the sampling rate of 44.1kHz, the internal DSP effects of the R24 are also usable on your computer track. A dedicated control lets you adjust the mixing balance between the DAW playback sound and the direct sound for monitoring.

Transport and mixing operations of the DAW software can be controlled using the R24. This gives you greater control and a better feel for mixing. In Mackie control emulation mode, major DAW applications such as Cubase, Logic and Sonar are supported.

Specify a range from any track to use as loop material. Then play them in real time with trigger playback using the drum pads, or use the onboard sequencer to build the loop structure for a song. Recording on another track while playing loops is also possible, seamlessly blending the recorder and sampler functions.

Zoom R24 Includes

  • Zoom SD Memory Card (1GB)
  • USB Memory (2GB)
  • AC Adapter (AD-14)
  • USB Cable
  • Zoom Warranty

Zoom R24 Features

  • Record 8 tracks simultaneously with 24 track playback
  • Audio interface with 8-in/2-out capability
  • Control surface for all major DAW functions
  • Pad sampler with 24 voices (8 pads x 3 banks)
  • Drum machine with 10 kits and velocity sensitive pads
  • Large 1.9 inch LCD shows waveform information
  • High sensitivity stereo mics built in
  • 8 combination XLR/phono input jacks
  • Hi-Z compatible input
  • 6-channel simultaneous phantom power supply capability
  • 135 DSP effects including guitar amp simulations
  • Support for SDHC cards for up to 32 GB
  • USB based sync capability for two R24 units allows 16-track simultaneous recording and 48-track simultaneous playback
  • Runs for about 4 hours on six AA batteries
  • Sleek design only 35 mm high

Zoom R24 Specifications

Simultaneous Recording Tracks 8
Simultaneous Playback Tracks 24
Recording Data Format 44.1/48kHz, 16/24bit WAV
Maximum Recordable Time 200 minutes / GB (44.1kHz 16-bit, mono tracks)
Projects 1,000
Markers 100 / Project
Locator Hours / Min. / Sec. / msec or Bars / Beats / Ticks
File Editing Divide, Trim
Other Functions Punch-In / Out (Manual, Automatic), Bounce, A-B Repeat, Undo / Redo, Metronome
Input Channels 8
Output Channels 2
Quantization 24bit
Sampling Frequency 44.1, 48, 88.2, 96kHz
Faders 9
Level Meters 4-Segment LED
Track Parameters 3-Band Equalizer, Pan (Balance), Effect Send x 2, Invert
Stereo Links Track pairs 1/2 to 23/24 selectable
Algorithms 9 (CLEAN, DISTORTION, ACO / BASS SIM, BASS, MIC, DUAL MIC, STEREO, 8 x COMP EQ, MASTERING)
Effects Types 150
Modules 7 for Insert, 2 for Send / Return
Patches 330 for Insert, 60 for Send / Return
Tuner Chromatic, Guitar, Bass, Open A/D/E/G, D modal
Playback Data Format 44.1/48kHz, 16/24bit WAV
Voices 24
Editing Functions Trim, Time-stretch
Voices 8
Sound Format 16-bit Linear PCM
Drum Kits 10
Pads 8 (velocity-sensitive)
Precision 48 PPQN
Rhythm Patterns 511/project
Patterns 511 (472 factory, 39 blank) / Project
Beat 1/4 - 8/4
Tempo 40.0 - 250.0 BPM
Recording Media SD Card (16MB-2GB), SDHC Card (4-32GB)
A/D Conversion 96kHz 24bit delta-sigma ADC
D/A Conversion 96kHz 24bit delta-sigma DAC
Display 128 x 64 pixel LCD (with backlight)
Inputs 8 x XLR-1/4" Phone Combo Jack / Input Impedance
Built-in microphones Omnidirectional condenser microphones Gain: -50dBm to +4dBm continuously variable
Phantom Power Supply 48V / 24V
Master Output 1/4" TRS Phone (balanced) / Output Impedance: 1kohm / Rated Output Level: +4dBm
Headphones Output 1/4'' Stereo Phone Jack, 20mW x 2 (at 32ohm load)
USB [B type (USB2.0 High-Speed compatible)] Audio Interface
Power Requirements AC adaptor (DC5V/1A/center positive) or AA size (LR6) battery x6
Battery Life 4.5 hours (with backlight on and phantom power off)
Dimensions (W x D x H) 376 x 237.1 x 52.2mm / 14.80 x 9.33 x 2.06in
Weight 2.8lbs / 1.3kg
