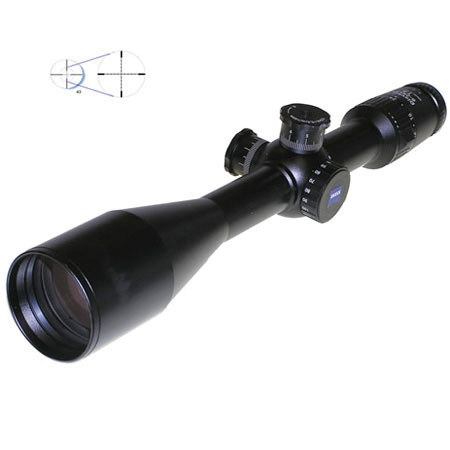

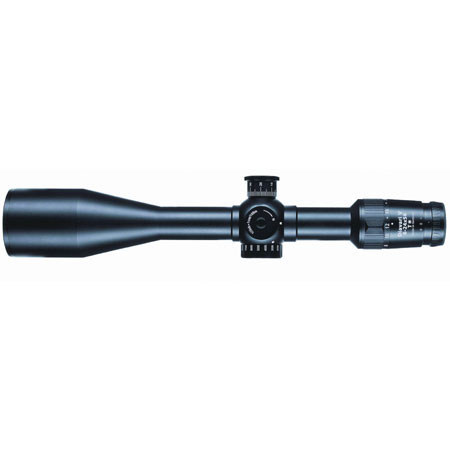

Zeiss 6 - 24 x 56mm T* Diavari VM/V Series Riflescope, Matte Black Finish with Mil-Dot Reticle, 30mm Tube, "V" Without Rail.
Mfr. Part: 5217519943 SKU: ZSRV624X56MM
|
|
 |
|
|
|
Item Includes
Lifetime Transferrable Warranty, Lens Caps, Cleaning Cloth.
|
Description
The Diavari VM (with integral mounting rail) and V (without rail) scopes offer the hunter and shooter considerably lighter weight, increased field-of-view and a wider power range. Again, Zeiss has established an optical and technical standard by which all others are judged.
Diavari V 6-24x56T*
The high power riflescope with reticle in second image plane - also available with illuminated reticle. With the Diavari V 6-24x56 T*, Zeiss presents a new riflescope for very long range.
A remarkable feature in this category is the large objective lens diameter of 56 mm, which offers a clear and brilliant image even in poor light. Other interesting features, some of them exclusive, are:
· Reticle in the second image plane, so its size remains constant across the entire power range. At high magnifications little of the target is concealed, an advantage when sighting small targets at great distances.
· Very large adjustment range for the reticle of up to 160 cm at 100 m. This makes sighting-in easier at long range.
· Precise reticle adjustment with clickstop mechanism in steps of 0.5 cm at 100 m.
· Bullet drop compensator fitted as standard.
· Mil Dot reticle available.
· Illuminated reticle available for shooting accurately in low light, an option exclusive to riflescopes in this performance category.
· Parallax adjustment from 49.2 yds to infinity via a knob on the side |
Specifications
| Catalog # | 521690 9943 |
| Magnification | 6.0x - 24x |
| Objective / Field of View | 56mm. |
| Field of View | 18.6' @ 6.0x at 100 yds., 5.10' @ 24x at 100 yds. |
| Main (Center) Tube Diameter | 30mm |
| Objective Tube Diameter | 62mm |
| Eyepiece Tube Diameter | 40mm |
| Lens Coatings | Zeiss T* Multicoating
AOS Lead & Arsenic-free glass. |
| Reticle | Mil-Dot Reticle. |
| Reticle Image Plane (Magnifying) | 2nd Image Plane, Non-Magnifying. |
| Twilight Performance | 16.9 @ 6.0x, 36.7 @ 24x |
| Exterior Finish | Matte Black |
| Windage & Elevation Adjustments (MOA) | Inches at 100 yds:
Windage Adjustment Range: 25.2
Elevation Adjustment Range: 57.6 |
| Adjustment Graduation | 1 Click Equals 0.5cm at 100m |
| Exit Pupil | 9.3mm @ 6.0x / 2.3mm @ 24x |
| Eye Relief | 3.15" @ 6.0x / 3.15" @ 24x
@@ Consistent Eye Relief Throughout the Power Range. |
| Parallax Correction Control | Parallax free from 50 yds to Infinity. |
| Material | One Piece Aluminum Tube |
| Nitrogen Filled | Yes |
| Waterproof / Fogproof | Yes |
| Length | 14.84" |
| Weight | 28.40oz. |
| Special Features | Lifetime Transferrable Warranty. |
| | |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
