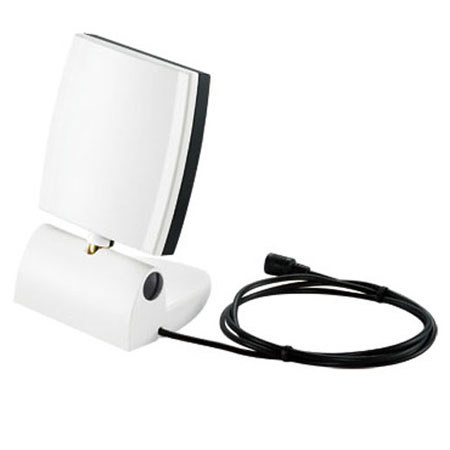

ZyXEL ANT2206 2.4/ 5GHz 6dBi Indoor External Antenna

SKU: ZYANT2206 MFR: ANT2206
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$39.99
Qty:
Add to Wishlist

About the ZyXEL ANT2206

ZyXEL ANT2206 2.4/ 5GHz 6dBi Indoor External Antenna supports either table stand or wall-mount brackets. It Operates in both 2.4GHz & 5GHz bands with 6dBi gain for 2.4GHz, 8dBi for 5GHz.

ZyXEL ANT2206 Specifications

Frequency Range 2400-2500MHz, 4900-5875MHz
Gain 6dBi for 2.4GHz; 8dBi for 5GHz
VSWR 2.0:1 Max
Polarization Linear, vertical
HPBW / Horizontal 65 for 2.4GHz; 50 for 5GHz
HPBW / Vertical 75 for 2.4GHz; 50 for 5GHz
Front to back ratio 12dB
Connector RP SMA Plug
Operating Environment Temperature: -10deg. C - 55deg. C
Humidity: 95% at 55deg. C
Storage Environment Temperature: -10deg. C - 55deg. C
Humidity: 95% at 55deg. C
Radome Material ABS, UV resist
Dimensions 76 x 86 x 118 mm / 2.99 x 3.38 x 3.38 in
Weight 110 g / 3.88 oz
