ZyXEL ANT3108 8dBi 5GHz Outdoor Omni Antenna

SKU: ZYANT3108 MFR: ANT3108

Our Price

$59.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: Special Order .

Free Shipping

See all shipping options

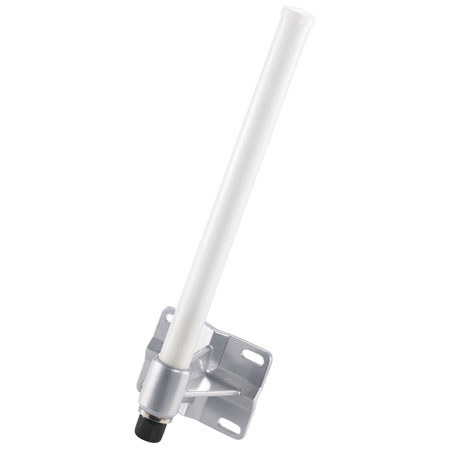

ZyXEL ANT3108: Picture 1 regular $59.00

About ZyXEL ANT3108

ZyXEL ANT3108 8 dBi 5Ghz Outdoor Omni wireless network antennas typically perform best in open environments with the least amount of obstructions possible. Performance may be significantly impaired if antennas are mounted near metal surfaces, concrete walls, or other high-density materials. To meet the challenge of these and other severe environments, ZyXEL offers performance-enhancing antennas for its ZyAIR family of wireless modems.

ZyAIR's extended reach antennas allow users to get the best wireless performance out of the most difficult environments. With ZyAIR antennas, customers will enjoy greater reach and better transmission quality for their wireless networks.

The ZyAIR family includes multiple antenna options to satisfy a wide range of wireless connectivity needs.

ZyXEL ANT3108 Features

  • Operating in 5GHz bands with 8dBi gain
  • Built-in N-Jack connector and compatibility with outdoor accessories to extend outdoor coverage for ZyXEL WLAN devices
  • Mounting kit included for easy installation

ZyXEL ANT3108 Specifications

Frequency Range
5150 - 5875MHz
Gain
8dBi
VSWR
2.0:1 Max
Polarization
Linear, vertical
HPBW / Horizontal
360
HPBW / Vertical
20
Power handling
2W (cw)
Impedance
50Ohm
Connector
N type female
Radome Material
ABS, UV resist
Survival wind speed
216KM/Hr
Operating Environment
Temperature: -40deg. C - 80deg. C
Humidity: 95% at 55deg. C
Storage Environment
Temperature: -40deg. C - 80deg. C
Humidity: 95% at 55deg. C
Dimensions
f 20 x 260 mm
Weight
206g / 7.26 oz
Mfr #
ANT3108
SKU
ZYANT3108
