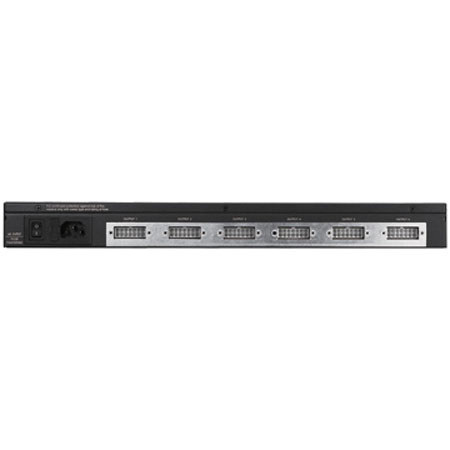

ZyXEL BPS120 Back-up Power Supply System

ZyXEL BPS120: Picture 1 thumbnail ZyXEL BPS120: Picture 2 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About ZyXEL BPS120

The ZyXEL BPS120 is a stand-alone backup power unit designed to connect up to six external networking devices. When the internal power unit of one such device fails, the BPS provides power instantly to the failing device to prevent it from rebooting. Although up to six devices can be connected, only one can be powered by BPS120 at once. The output rating is 12VDC 120 watts.
The single rack-mount BPS-120 unit can combine with the ZyXEL L2/L3 Enterprise switch with inline power, as well as an UPS to create a Centralized Power Provisioning System.

ZyXEL BPS120 Features

  • Don't let a bad power supply take your switch offline
  • One BPS120 can provide backup to 6 switches, reducing expense and freeing up space in your wiring closet
  • Temperature, power and fan speed monitoring for best performance

ZyXEL BPS120 Specifications

AC Input Voltage
100 - 240V AC 50/60Hz
Overload protection (Power module fuse)
1.8A Max internal universal power supply
120W per port 12V DC output
Power consumption 180W maximum (AC)
Operating Temperature
0deg.C - 45deg.C (32deg.F - 113deg.F)
Storage Temperature
-13deg.F - 158deg.F / -25deg.C - 70deg.C
Operational Humidity
10% - 90% (non-condensing)
Rack mountable Size
Dimensions (W x D x H)
17" x 10.6" x 1.8" / 440 x 270 x 45 mm
8.8lbs / 4.0kg
