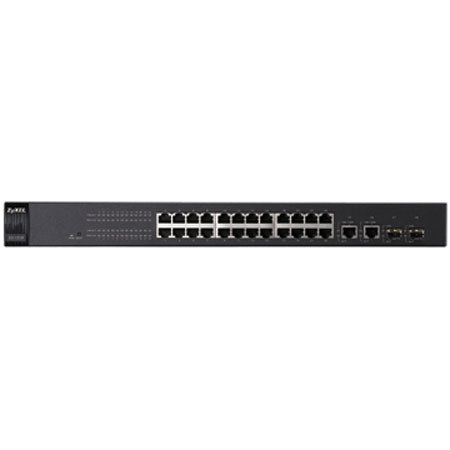

ZyXEL ES1528 24 Port Fast Ethernet Switch with Four Gigabit Uplinks Ports

SKU: ZYES1528 MFR: ES1528
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$219.99 $9 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the ZyXEL ES1528

ZyXEL ES-1528 comes with 24 Fast Ethernet copper ports plus four Gigabit uplinks (two 1000Base-T ports and two SFP slots) that fire up the non-blocking connection power to 12.8Gbps on SMB/SB networks and its multi-function design fits into copper or fiber networks easily. By utilizing 4G uplinks and port aggregation, bandwidth on critical paths can be expanded flexibly by merging multiple traffic pipelines into a logical one to dramatically improve network stability.

ZyXEL ES1528 Features

  • While many legacy Web Smart switches improve manageability, complexity is still a challenge. For most SMBs, inadequate IT expertise and complicated configurations are the major obstacles to overcome before getting connected. Powered by the newest hardware platform with smart ACL technology
  • The ZyXEL ES-1528 comes with a streamlined and intuitive Web-GUI for features demanded by SMB; such as 802.1Q VLAN, 802.1p traffic priority and static port aggregation. Requiring no awkward configurations or bulky user guide, the ES-1528 provides valuable features and convenience for SMBs
  • ZyXEL is highly aware that network security is a top priority for SMBs and has therefore enabled the ES-1528 to effectively combat DoS attacks. Equipped with Auto DoS Attack Prevention, the ES-1528 is capable of fighting against ubiquitous DoS attacks
  • ES-1528 supports 802.1Q VLAN for traffic isolation, as well as static MAC forwarding and dynamic ARP to establish a strictly protected network
  • It usually requires IT expertise to optimize a network for VoIP applications. With the emergence of the "Auto VoIP", however, the ES-1528 can identify VoIP packet patterns and grant the highest priority to establish a VoIP-friendly communication automatically
  • Auto VoIP offers IP telephony without configuration headaches. Features like four priority queues and a WFQ scheduling algorithm allows users to optimize network bandwidth usage and Quality of Services
  • Advanced features with a simplified interface makes configuration a snap: Auto DoS Attack Prevention & Auto VoIP
  • 12.8 Gbps Non-blocking Switching Fabric for the fastest speeds
  • Flexible 4 GbE Uplink Interfaces provide maximum speed between switches

ZyXEL ES1528 Specifications

Standard Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.ab 1000 Base-T Ethernet
IEEE802.3ah 1000Base-BX
IEEE 802.3z
IEEE 802.3x Flow control
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.3ad static port aggregation
Non-blocking switching fabric 12.8Gbps
Switching Forwarding Rate 9.6Mpps (1488000pps/1000Base-T/1000Base-X, 148800pps/100Base-TX)
Wire-speed performance Yes
MAC and Packet Buffer 8K MAC entries
512KB Packet Buffer
Traffic Management and QoS Rate Limiting: Port-based bandwidth control with 7 grades 64kbps, 256 kbps, 1Mbps, 10Mbps, 64Mbps, 100Mbps, 1Gbps)
Port-based egress traffic shaping
Broadcast Storm Control
Congestion control on all ports
IEEE 802.1p with 4 priority queues per port for different types of traffic
WRR (Weighted Round Robin)/SPQ scheduling algorithm
Link Aggregation IEEE 802.3ad static port aggregation
Up to 6 aggregation groups, per group supports up to 8 ports
User Security and Authentication Specific MAC forwarding per port: only specified MAC addresses can access the network (Port Security)
IEEE 802.1Q tagged VLAN
256 static VLAN, up to 4K dynamic VLAN
Dynamic ARP
Network Administration Security Password required for administrators
Network Management Web-based management
SNMP v1, v2
IP management: static IP
RMON
Port mirroring: supports Source/Destination/Both port mirroring
Cable Diagnostic
MIB Information RFC1213MIBII (System, Interface)
RFC1398 (Ether-like)
Hardware Requirements Support of auto-negotiation
Support of auto MDI/MDI-X
Ports: 24 10/100BASE-T, RJ-45 ports, 2 1000Base-T ports and 2 SFP open slots
Input voltage of AC 100-240VAC, 50/60Hz
Max power rating of AC 11.6 Watt
Operating temperature 32deg. F - 113deg. F / 0deg. C - 45deg. C
Storage temperature 14deg. F - 158deg. F / - 10deg. C - 70deg. C
Operating humidity 10%-90%, (non-condensing)
Dimensions (W x D x H) 17" x 5" x 1.75" / 438 x 130 x 44.5 mm
Weight 4.3lbs / 1.95kg
