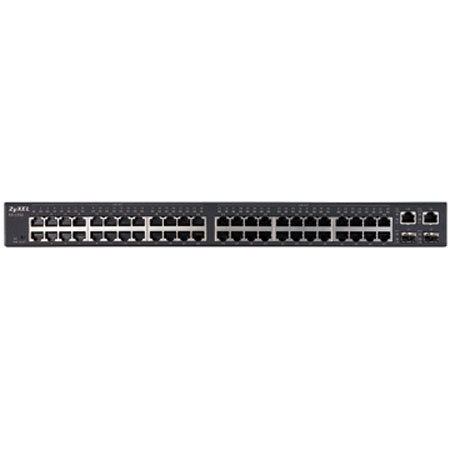

ZyXEL ES1552 48-Port Fast Ethernet Switch with Four Gigabit Uplinks Ports

SKU: ZYES1552 MFR: ES1552
ZyXEL ES1552: Picture 1 thumbnail ZyXEL ES1552: Picture 2 thumbnail ZyXEL ES1552: Picture 3 thumbnail
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify Me

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • Advanced features
  • Gigabit Transfer Rate
  • Ethernet Switch
  • Single-band
  • 1000 Mbps
  • 48 Ports
  • Wired

About ZyXEL ES1552

ZyXEL ES-1552 comes with 48 Fast Ethernet copper ports plus four Gigabit uplinks (two 1000Base-T ports and two SFP slots) that fire up the non-blocking connection power to 17.6Gbps on SMB/SB networks and its multi-function design fits into copper or fiber networks easily. By utilizing 4G uplinks and port aggregation, bandwidth on critical paths can be expanded flexibly by merging multiple traffic pipelines into a logical one to dramatically improve network stability.

ZyXEL ES1552 Features

  • While many legacy Web Smart switches improve manageability, complexity is still a challenge. For most SMBs, inadequate IT expertise and complicated configurations are the major obstacles to overcome before getting connected. Powered by the newest hardware platform with smart ACL technology
  • The ZyXEL ES-1552 comes with a streamlined and intuitive Web-GUI for features demanded by SMB; such as 802.1Q VLAN, 802.1p traffic priority and static port aggregation. Requiring no awkward configurations or bulky user guide, the ES-1552 provides valuable features and convenience for SMBs
  • ZyXEL is highly aware that network security is a top priority for SMBs and has therefore enabled the ES1552 to effectively combat DoS attacks. Equipped with Auto DoS Attack Prevention, the ES-1552 is capable of fighting against ubiquitous DoS attacks
  • ES-1552 supports 802.1Q VLAN for traffic isolation, as well as static MAC forwarding and dynamic ARP to establish a strictly protected network
  • It usually requires IT expertise to optimize a network for VoIP applications. With the emergence of the "Auto VoIP", however, the ES-1552 can identify VoIP packet patterns and grant the highest priority to establish a VoIP-friendly communication automatically
  • Auto VoIP offers IP telephony without configuration headaches. Features like four priority queues and a WFQ scheduling algorithm allows users to optimize network bandwidth usage and Quality of Services
  • Advanced features with a simplified interface makes configuration a snap: Auto DoS Attack Prevention & Auto VoIP
  • 17.6 Gbps Non-blocking Switching Fabric for the fastest speeds
  • Flexible 4 GbE Uplink Interfaces provide maximum speed between switches

ZyXEL ES1552 Specifications

Standard Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.ab 1000 Base-T Ethernet
IEEE 802.3x Flow control
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.3ad static port aggregation
Non-blocking switching fabric
17.6 Gbps
Switching Forwarding Rate
9.6/13.1Mpps (1488000pps/1000Base-T/1000Base-X, 148800pps/100Base-TX)
MAC and Packet Buffer
8K MAC entries
512KB Packet Buffer
Traffic Management and QoS
Rate Limiting: Port-based bandwidth control with 7 grades 64kbps, 256 kbps, 1Mbps, 10Mbps, 64Mbps, 100Mbps, 1Gbps)
Port-based egress traffic shaping
Broadcast Storm Control
Congestion control on all ports
IEEE 802.1p with 4 priority queues per port for different types of traffic
WRR (Weighted Round Robin)/SPQ scheduling algorithm
Link Aggregation
IEEE 802.3ad static port aggregation
Up to 6 aggregation groups, per group supports up to 8 ports
User Security and Authentication
Specific MAC forwarding per port: only specified MAC addresses can access the network (Port Security)
IEEE 802.1Q tagged VLAN
256 static VLAN, up to 4K dynamic VLAN
Dynamic ARP
Network Administration Security
Password required for administrators
Network Management
Web-based management
SNMP v1, v2
IP management: static IP
Port mirroring: supports Source/Destination/Both port mirroring
Cable Diagnostic
MIB Information
RFC1213MIBII (System, Interface)
RFC1398 (Ether-like)
Hardware Requirements
Support of auto-negotiation
Support of auto MDI/MDI-X
Ports: 24 10/100BASE-T, RJ-45 ports, 2 1000Base-T ports and 2 SFP open slots
Input voltage of AC
100-240VAC, 50/60Hz
Max power rating of AC
20.5 Watt
Operating temperature
32deg. F - 113deg. F / 0deg. C - 45deg. C
Storage temperature
14deg. F - 158deg. F / - 10deg. C - 70deg. C
Operating humidity
10% - 90%, (non-condensing)
Dimensions (W x D x H)
1.45' x 7.7" x 1.75" 6 lbs / 441 x 195 x 44.5 mm
6lbs / 2.7kg
