ZyXEL ES2108 8 Port Fast Layer 2 Managed Ethernet Switch

SKU: ZYES2108 MFR: ES2108

Our Price

$188.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • 10/100 Transfer Rate
  • Ethernet Switch
  • Single-band
  • 100 Mbps
  • 8 Ports

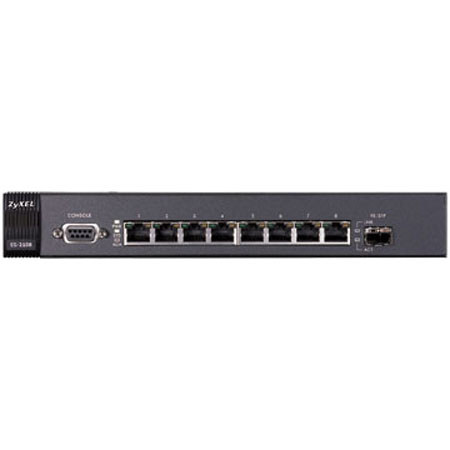

ZyXEL ES2108: Picture 1 regular $188.99

About ZyXEL ES2108

The ES-2108 Managed Layer 2 Fast Ethernet Switch Series is specially designed for small workgroup environments. Fan-less design eliminates annoying noise, which makes this unit suitable for noise-intolerant environments. This switch is equipped with a non-blocking 5.6 Gbps switching architecture for wire-speed transmission capability.

ZyXEL ES-2108 Series is designed to serve diverse applications in various networking environments. For Quality of Service applications, the ES-2108 series comes with four priority queues per port for different types of traffic. In addition, DSCP is supported to realize an end-to-end QoS environment. For IP multicasting applications, ES-2108 series features IGMP snooping to optimize service quality. Also in bandwidth management, ES-2108 Series can support increments of 64Kbps to fulfill bandwidth differentiation.

The ZyXEL ES-2108 Series features VLAN function to secure your network: With 802.1Q tagged VLAN and port-based VLAN. With 4K PVID, you enjoy freedom in VLAN management. In addition to MAC filtering, MAC freezing and Specific MAC forwarding, the ES-2108 Series allows the network administrator to set security policy based on device MAC addresses.

ZyXEL ES2108 Features

  • Fan-less design for noise-sensitive environment
  • Bandwidth control to ensure enough bandwidth for sensitive applications
  • Bandwidth control to ensure enough bandwidth for sensitive applications
  • MAC Filtering, Freeze, Intrusion Lock and Specific MAC Forwarding for enhanced security

ZyXEL ES2108 Specifications

Standard Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.3x Flow control
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port authentication
IEEE 802.3ad LACP aggregation
Non-blocking switching fabric
3.6Gbps
Switching Forwarding Rate
1.2Mpps (148800pps/100Base-TX)
MAC
8K MAC entries
Traffic Management and QoS
IEEE 802.1p with 4 priority queues per port for different traffic types
Supports DSCP
IEEE 802.1Q tag-based and port-based VLAN
Supports GVRP, automatic VLAN member registration
Supports IGMP snooping
Congestion control on all ports
Broadcast storm control
Rate limiting
Resilient Link and Link Aggregation
IEEE 802.3ad compliant
Supports LACP, static and dynamic link aggregation
Up to 2 aggregation groups, each group supports up to 4 ports (FE only).
IEEE802.1w Rapid Spanning Tree Protocol (RSTP) provides rapid convergence of
spanning tree independent of the spanning-tree timer
Security and Authentication
MAC filtering per port secures access to each port
Specific MAC forwarding per port allows only specified MAC addresses to access the network (port lock)
IEEE 802.1x port-based security preventing unauthorized users from accessing the network
256 static VLAN and up to 4K dynamic VLAN
Full range 4K PVID
MAC Freeze
Intrusion Lock
Network Administration
User name/password required for web/telnet/local console administrators
Two security levels with specific SNMP read/write community
Network Management
Supports ZyXEL iStacking where up to 24 switches can be managed by one IP address
Web-based management
Telnet CLI (Command Line Interface)
SNMP v2c
RS-232c local console
IP management: static IP or DHCP client
4 RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
Supports Source/Destination/Both port mirroring
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Console port
1 D-Sub 9-pin Female (DCE)
Input voltage of AC
100-240VAC, 50/60Hz
Max power rating of AC
10 Watt
Operating temperature
32deg.F - 113deg.F / 0 - 45deg.C
Storage temperature
-13deg.F - 158deg.F / -25 - 70deg.C
Operating humidity
10% - 90% (non-condensing)
Dimensions
9.8" x 5.3" x 1.4" / 250 x 135 x 35 mm
Weight
2.6 lbs / 1.2 Kg
Mfr #
ES2108
SKU
ZYES2108
