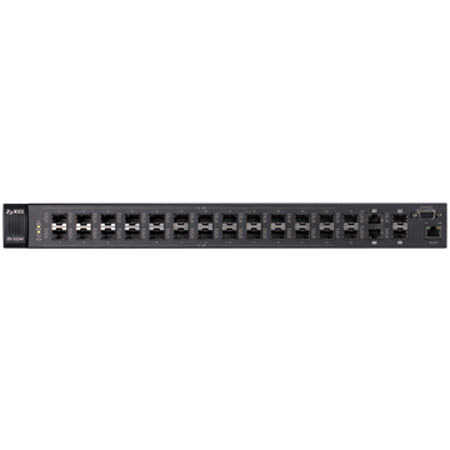

ZyXEL ES3124F 24 Port Layer 2+ Managed Fast Ethernet Fiber Switch with 2 GbE ports and 2 Shared GbE/SFP Ports

SKU: ZYES3124F MFR: ES3124F
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$769.99
Free Shipping
Qty:

Add to Wishlist

About the ZyXEL ES3124F

ZyXEL's ES-3124F is a series of carrier-class L2+ managed access switches. With robust performance in network resiliency, QoS, IP multicasting and security, the ES-3124F is the ideal solution for cable, utilities or municipality operators and service providers to adopt in Active Ethernet ETTx deployments.

ES-3124F supports four GbE SFP slots for establishing fiber rings to offer better network resiliency, while ES-3124F has 24 100BASE-X SFP open slots for superior fiber aggregation capability. ES-3124F can be combined with ES-2108-F to form an end-to-end fiber access solution. All above models support the latest single fiber transceiver (BX type) for better system flexibility and easier fiber installation.

ZyXEL ES3124F Features

  • 24 100BASE-X SFP Open Slots provide flexibility in fiber technology
  • 4 GbE SFP Slots for fast uplinks to the rest of your network
  • Backup Power System (BPS) support to minimizes network downtime
  • Policy-based QoS optimizes multi-service quality
  • Minimizes Channel Surfing Disturbance with Fast Leave
  • As an alternative power source, BPS prevents the system from total blackouts caused by internal AC power supply failures and IEEE802.3ad Link aggregation also reduces network downtime by providing more packet paths and performs bandwidth aggregation on critical paths
  • With 256 static VLAN entries, the ES-3124F sufficiently satisfies the growing need for video, VoIP and access identification functionalities required by converged networks to deliver multiple services. Furthermore, The 4K PVID offers the best flexibility for VLAN configuration
  • The ES-3124F supports the 802.3ah operation, administration and maintenance (OAM) standard to facilitate device management and ZyXEL NetAtlas Enterprise EMS software for central management

ZyXEL ES3124F Specifications

Standard Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX/FX Ethernet
IEEE 802.3ah 100BASE-LX10
IEEE 802.3ah 100BASE-BX10-U
IEEE 802.3ah 100BASE-BX10-D
IEEE 802.3ab 1000BASE-T Ethernet
IEEE 802.3z
IEEE 802.3x Flow control
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1s Multiple Spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication
IEEE 802.3ad LACP aggregation
IEEE 802.1ad VLAN Stacking
Non-blocking switching fabric 12.8Gbps
Switching Forwarding Rate 9.6Mpps (1488000pps/1000BASE-T/1000BASE-X, 148800pps/100BASE-TX/100BASE-X)
MAC and Packet Buffer 16K MAC entries
32MB Packet Buffer
Traffic Management and QoS Rate Limiting: Rule-based/Port-based bandwidth control, 64kbps granularity
Supports Two-Rate-Three-Color (CIR/PIR)
Port-based egress traffic shaping
Broadcast Storm Control
Congestion control on all ports
IEEE 802.1p with 8 priority queues per port for different types of traffic
WFQ (Weighted Fair Queuing)/WRR (Weighted Round Robin)/SPQ scheduling algorithm
DSCP to 802.1p priority mapping
DSCP
Fast leave
IGMP snooping v1, v2, v3
MVR
Link Aggregation IEEE 802.3ad LACP link aggregation compliant
Support static manually port trunking
Up to six aggregation groups, per group support up to 8 ports
Resilient Network IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
BPS (Backup Power System)
User Security and Authentication 1 MAC filtering per port secures access to each port
Specific MAC forwarding per port: only specified MAC addresses can access the network (Port Security)
Limited MAC number per port
802.1x port-based authentication, compensated assignment over VLAN and bandwidth for valid access
IEEE 802.1Q tag-based and port-based VLAN
Support GVRP, automatic VLAN member registration
User Security and Authentication 2 256 static VLAN, up to 4K dynamic VLAN
Full range 4K PVID support
Port isolation
MAC Freeze
Intrusion Lock
VLAN Stacking (Q-in-Q)
BPDU transparency
IP Source Guard (DHCP snooping, ARP inspection)
DHCP relay/DHCP option 82
Network Administration Security User name/password required for web/telnet/local console administrators
Two level security by specific SNMP read/write community
Multiple Log-in session
Multiple access authorization management
SSH v1/v2
SSL/TLS
TACACS+
RADIUS client
Network Management Supports ZyXEL iStacking, up to 24 switches can be managed by one IP address
Web-based management
Telnet CLI
SNMP v1, v2c, v3
RS-232c Local console
IP management: static IP or DHCP client
RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
Port mirroring: supports Source/Destination/Both port mirroring
Intelligent ACL Based on MAC address
Based on VLAN
Based on IP address
Based on Protocol type
Based on TCP/UDP type
Based on DSCP (L2/L3/L4 Access List Control)
MIB Information RFC1213 MIB II
RFC1493 Bridge MIB
RFC1643 Ethernet MIB
RFC1757 RMON group 1,2,3,9
RFC2011 IP MIB
RFC2012 TCP MIB
RFC2013 UDP MIB
RFC2233 ifVHCPacketGroup.
RFC2674 VLAN MIB
RFC2925 PING-MIB and TRACEROUTE-MIB
ZyXEL Private MIB for EMS management
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Console D-Sub 9 pin Female (DCE)
Management 1 out-of-band management RJ-45 port
Ports 24 100BASE-X SFP slots + 2 GbE SFP lot and 2 dual-personality GbE ports (RJ-45 or SFP open slots)
Input voltage of AC 100-240VAC, 50/60Hz
Input voltage of DC -48V- -60V DC
Max power rating 60 Watt
Backup power supply 12V DC
Operating temperature 32deg. F - 113deg. F / 0deg. C - 45deg. C
Storage temperature -13deg. F - 158deg. F / - 25deg. C - 70deg. C
Operating humidity 10% - 90%, (non-condensing)
Dimensions (W x D x H) 17.2" x 10.6" x 1.75" / 438 x 270 x 44.45 mm
Weight 8 lbs / 3.6kg
