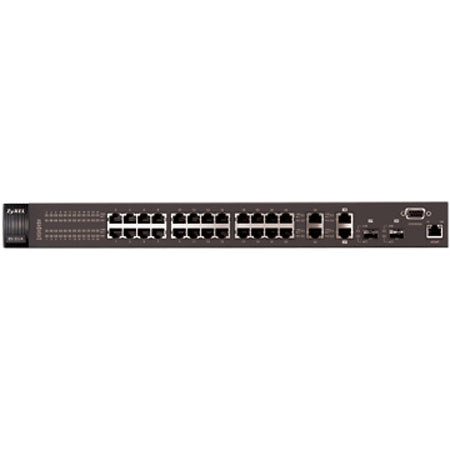

ZyXEL ES3124PWR 24 Port Layer 2 Managed Fast Ethernet Switch with Power Over Ethernet (POE)

ZyXEL
SKU: ZYES3124PWR MFR: ES3124PWR
ZyXEL ES3124PWR: Picture 1 thumbnail ZyXEL ES3124PWR: Picture 2 thumbnail ZyXEL ES3124PWR: Picture 3 thumbnail

Our Price

$1,199.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • PoE Switches & Modules
  • 10/100 Transfer Rate
  • Single-band
  • 100 Mbps
  • 24 Ports
  • Wired
ZyXEL ES3124PWR: Picture 1 regular $1,199.99

About ZyXEL ES3124PWR

ZyXEL ES-3124PWR is an intelligent L2+ managed Power over Ethernet (PoE) switch designed for Enterprises and campuses needing to deploy powered networking devices at remote locations. The ES-3124PWR conforms to the IEEE 802.3af standard supporting all PoE network infrastructures in the corporate environment.

The PoE technology adopted by ES-3124PWR allows Enterprises to transmit both data and electrical power to remotely powered devices, such as IP cameras, IP phones and wireless AP or routers through existing CAT-5 UTP cabling. This provides several advantages including single cabling, centralized remote power monitoring, as well as plug-and-play convenience and flexibility. These advantages result in lower deployment cost, higher management efficiency and future reconfiguration flexibility.

ZyXEL ES3124PWR Features

  • 24 Ports of full power 802.3af compliant PoE make it perfect for VoIP and WiFi deployments
  • L2+ (L2-L4) Access Control List (ACL) allows for better QoS and multimedia
  • ZyXEL iStacking Technology allows you to managed multiple switches from one IP
  • SSH v1/v2, SSL/TLS for secure management
  • ZyXEL ES-3124PWR boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 12.8Gbps. Its four built-in GbE uplink ports offer incredible extensibility, flexibility and connectivity to the Core switch or Servers
  • ZyXEL ES-3124PWR adds a built-in DC power receptacle on its rear panel for an external Backup Power System connection for even higher reliability and the system can switch to the alternative power source automatically in response to different situations
  • The ES-3124PWR prioritizes applications with WFQ (Weighted Fair Queuing) scheduling algorithm allocating appropriate bandwidth to important voice and video applications and empowering the Enterprise to take full advantage of the limited network resources while guaranteeing the best performance
  • The ES-3124PWR also supports a variety of ways to categorize and prioritize network packets. Multilayer information from L2 to L4 can be used to classify packet priorities for alignment with ACL features to construct a platform for Multi-Service Networks
  • ZyXEL ES-3124PWR offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms include per-port MAC filtering, limited per-port MAC number, port-based 802.1x user and device authentication
  • With supports for advanced features like iStacking, SNMP, Web, telnet, RS-232 and RJ-45 MGMT ports, the ES-3124PWR is very easy to deploy and manage. Better yet, its underlying ZyXEL iStacking technology allows up to 24 clustered switches to be managed by just one IP management

ZyXEL ES3124PWR Specifications

Standard Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.ab 1000 Base-T Ethernet
IEEE 802.3z
IEEE 802.3x Flow control
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication
IEEE 802.3ad LACP aggregation
IEEE 802.3af Power over Ethernet
IEEE 802.1ad VLAN Stacking
Non-blocking switching fabric
12.8Gbps
Switching Forwarding Rate
1488000pps forwarding rate for 1000Base-T/1000Base-X connectivity, 148800pps forwarding rate for 100Base-TX connectivity
MAC and Packet Buffer
16K MAC entries
16Mbits packet buffer
Power over Ethernet
Supports remote power management to enable or disable power feeding per port.
Maximum power supplied per port: 15.4Watt
Total power dedicated to PoE function: 375Watt
Traffic Management and QoS
IEEE 802.1p with 8 priority queues per port for different types of traffic
WFQ (Weighted Fair Queuing) scheduling for different prioritization of packets
IEEE 802.1Q tag-based and port-based VLAN
Supports GVRP, automatic VLAN member registration
Supports IGMP snooping
Congestion control on all ports
Rate Limiting: Rule-based bandwidth control
Port-based egress traffic shaping
Rule-based traffic mirroring
Link Aggregation
IEEE 802.3ad compliant
Support LACP, static and dynamic link aggregation
Up to 6 aggregation groups, per group support up to Eight ports.
Eight ports per group randomly selected
Redundancy for Fault Backup
IEEE802.1w Rapid Spanning Tree Protocol(RSTP) provides rapid convergence of spanning tree independent of spanning-tree timer
User Security and Authentication
MAC filtering per port secures access to each port
Specific MAC forwarding per port: only specified MAC addresses can access the network (port lock)
Limited MAC number per port
IP Filtering
TCP/UDP Socket Filtering
802.1x port-based security, prevent unauthorized client access to the network
256 static VLAN, up to 4K dynamic VLAN
Port-based VLAN & VLAN Isolation
Network Administration Security
User name/password required for web/telnet/local console administrators
Two level security by specific SNMP read/write community
SSHv1/v2
SSL/TLS
Network Management
Supports ZyXEL iStacking up to 24 switches can be managed by one IP address
Web-based management
Telnet CLI
SNMP v2c
RS-232c Local console
IP management: static IP or DHCP client
RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
Port mirroring: supports Source/Destination/Both port mirroring
Intelligent ACL
Based on MAC address
Based on VLAN
Based on IP address
Based on Protocol type
Based on DSCP (L2/L3/L4 Access List Control)
Ports
24 10/100BASE-T RJ-45 ports with 2 1000BASE-T RJ-45 ports + 2 dual-personality Gigabit Interfaces (RJ-45 or SFP open slots)
Console
D-Sub 9 pin Female (DCE)
Management
1 out-of-band management RJ-45 port
Input voltage of AC
100-240VAC, 50/60Hz
Max power rating of AC
50 Watt
Backup power supply
12V DC
Operating temperature
32deg. F - 113deg. F / 0deg. C - 45deg. C
Storage temperature
-13deg. F - 158deg. F / - 25deg. C - 70deg. C
Operating humidity
10% - 90%, non-condensing
Dimensions (W x D x H)
17.2" x 16.5" x 1.75" / 438 x 420 x 44.45 mm
Weight
15lbs / 6.8 Kg
Mfr #
ES3124PWR
SKU
ZYES3124PWR
