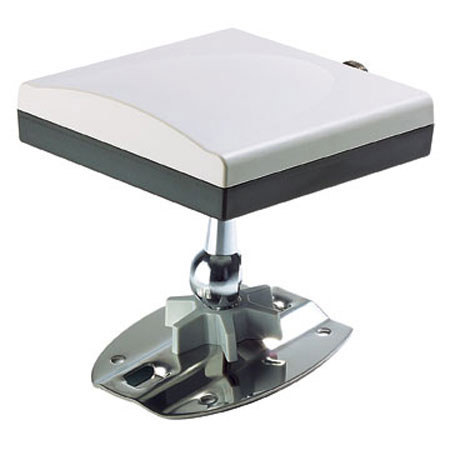

ZyXEL EXT109 9dBi Outdoor Panel Antenna is a wireless network antennas typically perform best in open environments with the least amount of obstructions possible. Performance may be significantly impaired if antennas are mounted near metal surfaces, concrete walls, or other high-density materials. To meet the challenge of these and other severe environments, ZyXEL offers performance-enhancing antennas for its ZyAIR family of wireless modems.
ZyAIR's extended reach antennas allow users to get the best wireless performance out of the most difficult environments. With ZyAIR antennas, customers will enjoy greater reach and better transmission quality for their wireless networks.
|Frequency range||2400 MHz - 2500 MHz|
|VSWR||1.5: 1 Max.|
|HPBW / horizontal||65deg.|
|HPBW / vertical||60deg.|
|Connector||N type female|
|Survival wind speed||216 km/hr|
|Temperature||- 40deg. C to 80deg. C|
|Humidity||95% at 55deg. C|
|Included Pigtail||N type to R-SMA pigtail|
|Dimensions||114 x 114 x 40 mm / 4.48 x 4.48 x 1.57 inches|
|Weight||107 g / 3.77 oz|
