ZyXEL

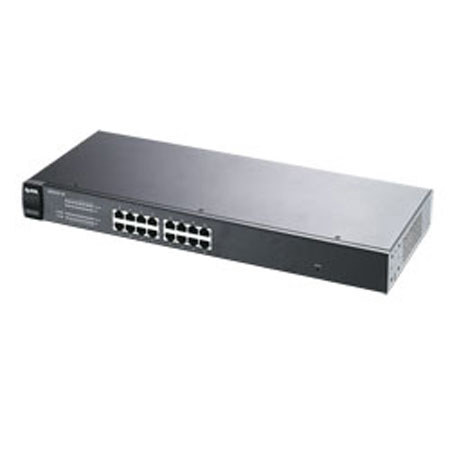

ZyXEL GS1510-16 Fanless 16 Port 10/100/1000 Mbps Gigabit Web Managed Switch

SKU: ZYGS151016 MFR: GS1510-16
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$214.99
Free Shipping
Qty:

Add to Wishlist

About the ZyXEL GS1510-16

The ZyXEL GS1510-16 is a user-friendly solution aiming at office network environments demanding silent operation and green technology. It provides security and plug-and-play simplicity for sustainable high-bandwidth connectivity.

The GS1510-16 is a 16-port 10/100/1000 Mbps Web-managed switches. It not only provides Layer-2 switching capability at wire speed over the current CAT-5 cabling to desktops following the IEEE standards, but also features high performance, ease of use, flexible deployment and enhanced energy efficiency. It is ideal for small businesses to protect the existing network investments while extending managed networks.

ZyXEL GS1510-16 Features

  • The GS1510-16 not only supports 802.1X port-based authentication that allows the network to be authenticated through external RADIUS servers, but also enables Web authentication to provide enhanced, secured collaboration with ZyXEL's NWA3000 AP Series
  • With the Auto MDI/MDI-X feature, it eliminates the need for crossover cables when connecting to another switch or hub; in addition, the Auto-negotiation feature senses the link speed of a connected network device then intelligently makes adjustments for compatibility and optimal performance
  • The GS1510-16 also offer easy management to fulfill user needs through SNMP and the Web-based GUI that provides two modes: the Smart Mode and the Advance Mode
  • The Smart Mode enables IT administrators to quickly set up important features such as basic IP settings, Energy Efficient Ethernet, Web Authentication, DHCP Snooping & the Spanning Tree Protocol (STP). The Advance Mode provides more comprehensive options for users to configure the advanced settings
  • The GS1510-16 provides Auto-discovery tool for topology management as well. This tool helps the network administrator to find the IP address of a GS1510-16 on the network by performing a scan process
  • The GS1510-16 has environment-awareness along with Gigabit Ethernet speeds critical for the next-generation network applications and provides power saving functions to reduce energy consumption and to help businesses save cost
  • Traffic detection- IEEE Energy-Efficient-Ethernet (EEE) compliance. The feature automatically detects network traffics and adjusts power consumption accordingly in a dynamic manner. It reduces power consumption during periods of low link utilization
  • Inactive link detection: The power usage adjustment feature automatically reduces power usage when any shut down network device or inactive link is detected. That is, power consumption of the Series can be adjusted according to the link status or the number of active network devices when possible
  • Cable length detection: The devices equipped with this green feature can automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes
  • The GS1510-16 is the perfect solution for small business and SOHO office deployments. The design promotes quieter environments and less heat dissipation and it offers energy and cost saving properties without affecting the desirable performance

ZyXEL GS1510-16 Specifications

Standard Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-Tx Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.3az EEE support
IEEE 802.3x Flow control
IEEE 802.1p Class of service, priority protocols
Traffic Management and QoS Port-based egress traffic shaping
Broadcast storm control
IEEE 802.1p with 8 priority queues per port for different traffic types
Weighted Round Robin (WRR)/SPQ/WFQ scheduling algorithm
Supports DSCP
Supports DSCP to 802.1p priority mapping
Supports IGMP/IGMP snooping v1, v2, v3
Jumbo frame support (up to 9 KB)
Auto-discovery
Link Aggregation IEEE 802.3ad LACP link aggregation compliant
Support static manually port trunking
Up to 8 aggregation groups, 8 ports/per group randomly selected
Resilient Network IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
User Security and Authentication Web authentication
256 static VLAN, up to 4K dynamic VLAN
Port-base VLAN
IEEE 802.1Q tag-based and port-based VLAN
Specific MAC forwarding per port: only specified MAC addresses can access the network (Port security)
802.1x port-based authentication, compensated assignment over VLAN and bandwidth for valid access
IP source guard
Loop guard
Network Administration Security User name/password required for Web
Two-level security by specific SNMP read/write community
Network Management Web-based management
SNMP v1, v2c
IP management: Static IP or DHCP client
RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
Port mirroring: Support source/destination/both port mirroring
MIB Information RFC 1213, 1157 SNMP v2c MIB
RFC 1493 bridge MIB
RFC 1643 Ethernet MIB
RFC 1757 RMON group 1, 2, 3, 9
1000Base-T 16
Switching Capacity (Gbps) 32
Switching Forwarding Rate (Mpps) 23.8
MAC Address 16K
Input Voltage of AC 100 - 240 V AC, 50/60 Hz
Maximum Power Consumption (Watt) 18
Operating temperature 0deg. C to 50deg. C
Storage temperature -40deg. C to 70deg. C
Operating humidity 10% to 95% (non-condensing)
Dimensions (W x D x H) 440 x 170 x 44 mm / 17.32" x 6.69" x 1.73"
Weight 2.3 kg / 5.07 lbs
