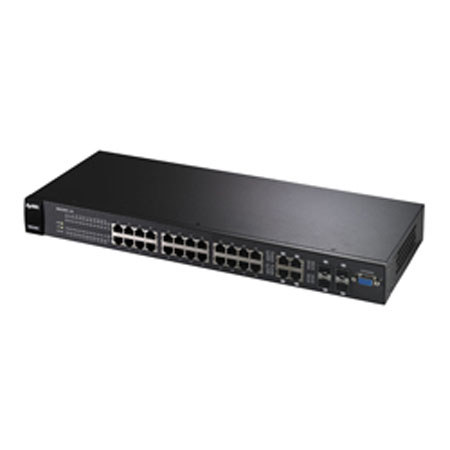

ZyXEL Gs2200-24 24 Port Enterprise LAN Switch with 4 GbE Dual Personality Port

SKU: ZYGS220024 MFR: GS2200-24
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$349.99 $14 per week
Free Expedited Shipping
Add to Wishlist In Stock

About the ZyXEL Gs2200-24

The ZyXEL GS2200-24 incorporates a high-performance switching architecture that provides 56 Gbps non-blocking switch fabric, 41.7 million packets per-second forwarding rate and wire-speed performance to connect high performance desktop devices with resources at the heart of the network. For branch offices and SME users, the GS2200-24 enables the delivery of converged applications and adapts to changing business needs with flexible configurations. In addition, the GS2200-24 is optimized for high-density Gigabit Ethernet deployments and is suitable for both the core and the edge of the network.

ZyXEL Gs2200-24 Features

  • Advanced L2 switching features
  • 56 Gbps non-blocking switch fabric
  • 4 Dual-personality (RJ-45/SFP) GbE interfaces
  • Port security and enhanced 802.1x port authentication
  • MAC freeze and intrusion lock
  • 8 IEEE 802.1p hardware priority queues
  • WFQ, WRR and SPQ queuing algorithms
  • The GS220024 is easy to use & manage the applications that are needed to support the business and increase productivity
  • The GS2200-24 provides rich features including VLANs, CoS/QoS, Port Trunking, Rapid Spanning Tree, Security (Port Security and 802.1x authentication) and network management to meet evolving SME requirements

ZyXEL Gs2200-24 Specifications

Standard Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-Tx Ethernet
IEEE 802.ab 1000Base-T Ethernet
IEEE 802.3z 1000Base-X Ethernet
IEEE 802.3x flow control
IEEE 802.1D spanning tree protocol
IEEE 802.1w rapid spanning tree protocol
IEEE 802.1s multiple spanning tree protocol
IEEE 802.1p class of service, priority protocols
IEEE 802.1x port authentication
IEEE 802.3ad LACP aggregation
Traffic Management and QoS Rate limiting: Rule-based/port-based bandwidth control, 64 kbps granularity
Broadcast storm control
IEEE 802.1p with 8 priority queues per port for different traffic types
WRR (Weighted Round Robin)/SPQ/ WFQ scheduling algorithm
Supports DSCP
Supports DSCP to 802.1p priority mapping

Supports IGMP/IGMP snooping v1, v2, v3
Congestion control on all ports
Link Aggregation IEEE 802.3ad LACP link aggregation compliant
Support static manually port trunking
Up to 6 aggregation groups, 8 ports/per group randomly selected
Resilient Network IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
User Security and Authentication 1 MAC filtering per port secures access to each port
IEEE 802.1Q tag-based and port-based VLAN
Support GVRP, automatic VLAN member registration
1K static VLAN, up to 4K dynamic VLAN
Full range 4K PVID support
Port-base VLAN & VLAN isolation
Intrusion lock
MAC freeze
Specific MAC forwarding per port: only specified MAC addresses can access the network (Port security)
User Security and Authentication 2 Limited MAC number per port
IP source guard
Loop guard
IP filtering
TCP/UDP socket filtering
BPDU transparency
802.1x port-based authentication, compensated assignment over VLAN and bandwidth for valid access
Network Administration Security Two-level security by specific SNMP read/write community
Multiple login session
Multiple access permission management
SSH v1/v2
Network Management Supports ZyXEL iStacking, up to 24 switches can be managed by one IP address
Web-based management
Telnet CLI
SNMP v1, v2c, v3
RS-232c local console
IP management: static IP or DHCP client
RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
Port mirroring: supports source/destination/both port mirroring
Intelligent ACL Based on MAC address
Based on VLAN
Based on IP address
Based on Protocol type
Based on TCP/UDP type
Based on DSCP
MIB Information RFC 1066 TCP/IP-based MIB
RFC 1213, 1157 SNMP v2c/v3 MIB
RFC 2011, 2012, 2013 SNMP v2 MIB
RFC 1493 bridge MIB
RFC 2674 bridge MIB extension
RFC 1643 Ethernet MIB
RFC 2358 Ethernet-like MIB
RFC 1757 RMON group 1, 2, 3, 9
RFC 2819, 2925 Remote Management MIB
ZyXEL private MIB
Port Density 10/100/1000Base-T: 24
Dual Personality GbE Ports: 4
Switching Capacity 56Gbps
Switching Forwarding rate 41.7Mpps
Packet buffer 448KB
MAC address 16K
Input Voltage of AC 100 - 240V AC, 50/60 Hz
Maximum power consumption 31 watt
Operating Temperature 0deg. C to 50deg. C
Storage Temperature -25deg. C to 70deg. C
Operating Humidity 10% - 90%, (non-condensing)
Dimensions (W x D x H) 440 x 173 x 44 mm / 17.32" x 6.81" x 1.73"
Weight 2.5 kg / 5.51 lbs
