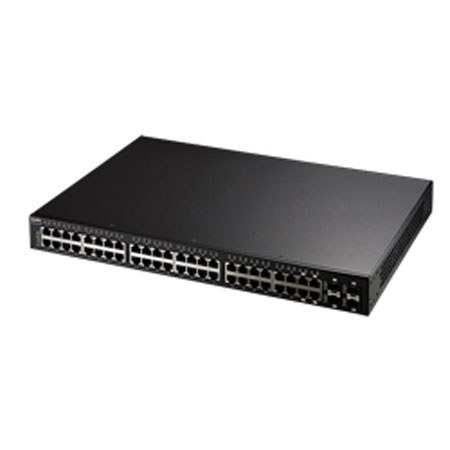

ZyXEL GS2200-48 48 Port Gigabit Layer 2 Managed Switch with 4 Dual Personality (RJ-45/SFP) GbE Interfaces

SKU: ZYGS220048 MFR: GS2200-48

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • Gigabit Transfer Rate
  • Ethernet Switch
  • 1000 Mbps
  • Dual-band
  • 48 Ports
ZyXEL GS2200-48: Picture 1 regular $1,396.49

About ZyXEL GS2200-48

The ZyXEL GS2200-48 incorporates a high-performance switching architecture that provides 100 Gbps non-blocking switch fabric, 74.4 million packets per-second forwarding rate and wire-speed performance to connect high performance computers, servers and network backbones. In addition, the GS2200-48 is optimized for high-density Gigabit Ethernet deployments to the desktop and includes a diverse range of switches meeting edge, distribution and small network connectivity requirements.

ZyXEL GS2200-48 Features

  • 100 Gbps Non-blocking Switch Fabric
  • 4 Dual-personality (RJ-45/SFP) GbE Interfaces
  • Port Security and Enhanced 802.1x Port Authentication
  • MAC Freeze and Intrusion Lock
  • 8 IEEE 802.1p Hardware Priority Queues
  • WFQ, WRR and SPQ Queuing Algorithms
  • The GS2200-48 is easy to use and manage. It's designed to increase productivity through reliable supports to business applications
  • The GS2200-48 provides rich features including VLANs, CoS/QoS, Port Trunking, Rapid Spanning Tree, Port Security, RSTP (802.1w), Security (Port Security and 802.1x authentication) and network management to meet future SME requirements

ZyXEL GS2200-48 Specifications

Standard Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.ab 1000 Base-T Ethernet
IEEE 802.3z
IEEE 802.3x Flow control
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1s Multiple Spanning tree protocol
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication
IEEE 802.1ad VLAN Stacking
IEEE 802.3ad LACP aggregation
Traffic Management and QoS
Rate Limiting: Rule-based/Port-based bandwidth control, 64 kbps granularity
Port-based egress traffic shaping
Broadcast Storm Control
IEEE 802.1p with 8 priority queues per port for different traffic types
WRR (Weighted Round Robin)/SPQ/ WFQ scheduling algorithm
Supports DSCP
Supports DSCP to 802.1p priority mapping
Supports IGMP/IGMP snooping v1, v2, v3
Congestion control on all ports
IP Routing and Service Features
64 IP routing domains
256K IP address table
Wire-speed IP forwarding
RIP v1, v2
Static Routing
Support DHCP Server/Relay
Link Aggregation
IEEE 802.3ad LACP link aggregation compliant
Support static manually port trunking
Up to 6 aggregation groups, 8 ports/per group randomly selected
Resilient Network
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
BPS (Backup Power System) Power Supply redundancy
User Security and Authentication 1
MAC filtering per port secures access to each port
IEEE 802.1Q tag-based and port-based VLAN
Support GVRP, automatic VLAN member registration
256 static VLAN, up to 4K dynamic VLAN
Full range 4K PVID support
Port-base VLAN & VLAN isolation
Intrusion Lock
User Security and Authentication 2
MAC Freeze
MAC filtering per port secures access to each port
Specific MAC forwarding per port: only specified MAC addresses can access the network (Port Security)
Limited MAC number per port
IP Source Guard
Loop Guard
IP Filtering
TCP/UDP Socket Filtering
BPDU transparency
802.1x port-based authentication, compensated assignment over VLAN and bandwidth for valid access
Network Administration Security
User name/password required for Web/Telnet/local console administrators
Two-level security by specific SNMP read/write community
Multiple login session
Multiple access permission management
SSH v1/v2
Network Management
Supports ZyXEL iStacking, up to 24 switches can be managed by one IP address
Web-based management
Telnet CLI
SNMP v1, v2, v3
RS-232c Local console
IP management: static IP or DHCP client
RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
Port mirroring: supports Source/Destination/Both port mirroring
Intelligent ACL
Based on MAC address
Based on VLAN
Based on IP address
Based on Protocol type
Based on TCP/UDP type
Based on DSCP (L2/L3/L4 Access List Control)
Switching Capacity
100 Gbps
Forwarding rate
74.4 Mbps
Packet buffer
512 KB
MAC address
8 K
Port Density
44 10/100/1000Base-T ports
2 GbE open SFP slot
4 GbE Dual-personalities ports
Input Voltage of AC
100 to 240V, 50/60 Hz
Maximum power consumption
92.8 watt
Operating Temperature
0deg. C - 45deg. C
Storage Temperature
-25deg. C - 70deg. C
Operating Humidity
10% - 90%, (non-condensing)
Dimensions (W x D x H)
438 x 310 x 44.45 cm / 17.24" x 12.20" x 1.75"
4.0 kg / 8.81 lbs
