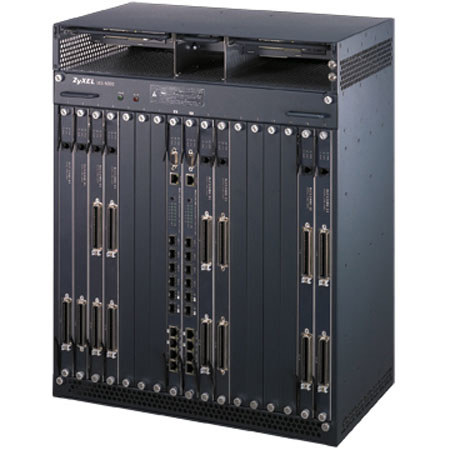

ZyXEL IES6000M Main Chassis for IES-6000

The ZyxEL IES-6000M is equipped with non-blocking Gigabit backplane, failover-enabled Management Switch Cards (MSC), dual input power modules and various high-port density multi-purpose line cards. With comprehensive IP-centric firmware features, the IES-6000M is a high-capacity system that facilitates Telco/ISP to deliver high-quality residential or business user services experience at competitive CAPEx/OPEx as well as satisfying its current and future infrastructural requirements of reliability, flexibility and scalability.

The IES-6000M is a 12.5 U-height, 17-slot chassis-based IP DSLAM capable of adopting the same Multi-Service line cards as those installed in IES 5000/5005 system. A new introducing MSC1024G control card with 8G grouping uplink is designed to plug into slot 8 and/or slot 9, while the remaining slots are available for equipping various line cards. Followed by MSC1224G, two 10G Gigabit Ethernet over fiber uplink will be available in near future.

The variety of line cards are including 48-port ADSL2+ line cards (over POTS and ISDN individually) that provide subscribers with asymmetric transmission bandwidth up to 25Mbps/2.4Mbps; 48-port SHDSL.bis line cards with symmetric transmission bandwidth of 4.096 Mbps (2-wire), 8.192 Mbps (4-wire) and 16.384 Mbps (8-wire); 24-port VDSL2 line cards that offer up to profile 17a (100Mbps/50Mbps)* high-speed connectivity per port over copper wires as well as 48 ports VoIP line card that support either H.248 or SIP protocol. The primary designed concept of IES 6000M is also taking account of the further technology evolution such as GPON.

The IES-6000M supports 1+1 MSC redundancy with a failover switch time less than 1 second. In addition, voltage, temperature and FAN speed sensors are fitted into the system. When an abnormal condition is detected, the LED displays and/or the corresponding alarms will alert administrators of the situation. In case the system temperature rises over the preset threshold, thermal cutoff protection will kick in to shut down the system automatically.
