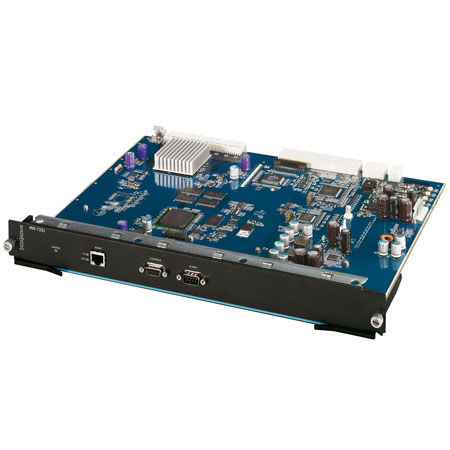

About the ZyXEL MM7201 Management Module

ZyXEL MM7201 Management Module is compatible for MS7206S Modular Switch.

ZyXEL MM7201 Management Module Features

  • 192 Gbps switch fabric
  • Load sharing and non-blocking performance
  • Out-of-band management
  • One 10/100BASE-TX management port
  • Two series port: RS-232 console and Alarm console
  • System status LEDs

ZyXEL MM7201 Management Module Specifications

Enclosure Type Plug-in module
Compatible Slots 1 x Expansion Slot
Routing Protocol RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, IGMPv3
Remote Management Protocol RMON 1, RMON 2, SNMP, RMON 3, RMON 9, SNMP 2c, HTTP
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), Secure Shell v.2 (SSH2)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Status Indicators Power, system, status
Interfaces 1 x 10Base-T/100Base-TX - RJ-45 - management ª 1 x RS-232 - 9 pin D-Sub (DB-9) - management ª Accessory: 1 x RS-232 - 9 pin D-Sub (DB-9)
Min Operating Temperature 0 deg.C
Max Operating Temperature 45 deg.C
Humidity Range Operating 10 - 90%
Dimensions (W x D x H) 39.7 x 27.6 x 4.3 cm/15.62 x 10.86 x 1.69 cm
Weight 1.7 kg/3.74 lb
