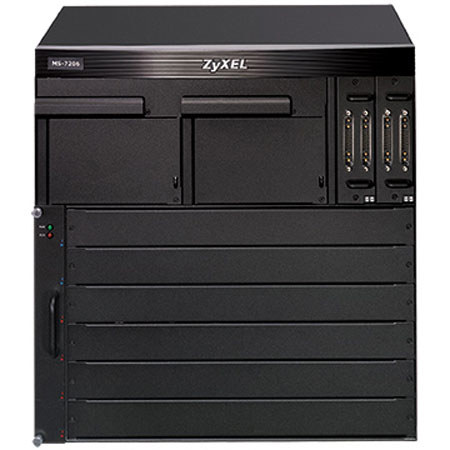

ZyXEL MS7206S Modular Ethernet Switch System Case

SKU: ZYMS7206S MFR: MS7206S
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,599.99
Free Expedited Shipping
Qty:
Add to Wishlist

About the ZyXEL MS7206S

ZyXEL's MS7206S is a switch that can be used in a lot of different roles. It can be a SMB core switch, a distribution switch for Enterprise and Campus deployments, an intelligent switch for Enterprise, or an aggregation switch for data centers and telcos. Up to 384G non-blocking switching capability, up to 192 Gigabit PoE ports, hot swappable modules, power supplies and fans, this switch has and can do it all.

ZyXEL MS7206S Features

  • Non-blocking 384 Gbps switching capacity
  • 192 Gigabit Ports per system
  • High flexibility-mixed GbE copper, fiber and PoE types
  • Advance OSPF scales to support larger network
  • OSPF ensures rapid determination of best routes (convergence), avoid routing loops
  • Rapid Spanning Tree provides Layer 2 resilience and prevent loops
  • VRRP ensures hosts (PCs) have uninterrupted service from default gateway
  • Sophisticated Layer 2 to Layer 4 ACL (Access Control List), making security policy to be applied at LAN easily
  • 802.1x network login, unified authentication platform over wired and wireless network
  • Bandwidth Guarantee with WFQ
  • Policy-based QoS for different applications
  • Intelligent L2-L4 ACL for traffic classification
  • Fast IP multicast to the edge (DVMRP L3+ multicasting, IGMP)
  • Hardware architecture preserved bandwidth for the growth of tomorrow Up-to-date designs (Gigabit, PoE, 10G Ethernet)
  • Supports Voice / Data multi-service network

ZyXEL MS7206S Specifications

System Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Ethernet
IEEE 802.ab 1000BASE-T Ethernet
IEEE 802.3z
IEEE 802.3x Flow control
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1s Multiple Spanning tree protocol
IEEE 802.1p Class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication
IEEE 802.3ad LACP aggregation
Performance Max. 384 Gbps non-blocking switching fabric
Switching Forwarding Rate 286 Mpps (1488000 pps/1000BASE-T/1000BASE-X, 148800 pps/100BASE-TX)
Traffic Management and QoS Rule/port-based Rate Limiting, 64 kbps granularity
Dual-Rate-Three-Color
CIR/PIR for bandwidth control
Port-based egress traffic shaping
Broadcast Storm Control
IEEE 802.1p with 8 priority queues per port
SPQ/WRR/WFQ scheduling algorithm
DSCP
DSCP to 802.1p priority mapping
IGMP/IGMP snooping v1, v2 & v3
MVR
IP Routing 64 IP routing domains
8 K IP address table
Wire-speed IP forwarding
RIP v1, v2
Static Routing
OSPF v2
Link Aggregation IEEE 802.3ad LACP link aggregation
Up to 6 aggregation groups, 8 ports/per group randomly selected
Resilient Network IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Security Intrusion Lock
MAC Freeze
MAC filtering
Port Security
Limited MAC number per port
802.1x port-based authentication
SSH v1/v2
SSL
Network Management ZyXEL iStacking up to 24 switches managed by single IP address
Web-based management
Telnet CLI
SNMP v1, v2c
RS-232c Local console
Static IP or DHCP client
RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
Port mirroring
Intelligent ACL (L2/L3/L4 ) Based on MAC address
Based on VLAN
Based on IP address
Based on Protocol type
Based on TCP/UDP type
Based on DSCP
Input voltage of AC 100-240 VAC, 50/60 Hz
Max power rating of AC 600 Watt
Operating temperature 0deg.C - 45deg.C
Storage temperature - 25deg.C - 70deg.C
Operating humidity 10% - 90%, (non-condensing)
Certification UL 60950-1
CSA 60950-1
EN 60950-1
IEC 60950-1
Dimensions (W x D x H) 435 x 315.5 x 447.2 mm/17.12 x 12.42 x 17.60"
Weight 15.5 Kg/34.17 lb
